1SBL181022R8410

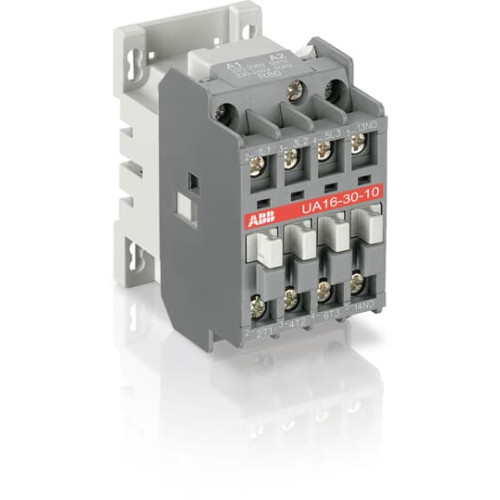

UA16-30-10 110V 50Hz / 110-120V 60Hz Contactor

Manufacturer's No: UA16-30-10     Manufacturer: ABB
UA16-30-10 110V 50Hz / 110-120V 60Hz Contactor

Availability On Request

£81.39
UA16 3-pole contactors for capacitor switching, can be used for the switching of capacitor banks whose inrush current peaks are less than or equal to 100 times nominal rms current. The table below gives the permissible powers according to operational voltage and temperature close to the contactor. It also specifies the maximum peak current Î values accepted by the contactor. The capacitors must be discharged (maximum residual voltage at terminals ? 50 V) before being re-energized when the contactors are making. In these conditions, electrical durability of contactors is equal to 100 000 operating cycles. The UA.. series 3-pole contactors are of the block type design. - Main poles and auxiliary contacts: 3 main poles, 1 built-in auxiliary contact - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available.


Product

Manufacturer Material ID -
UA16-30-10
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
BG
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Depth -
74 Millimetre
Height -
74 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated blind power at 400 V, 50 Hz -
12.5 Kilo-blindpower
Rated blind power at 400 V, 60 Hz -
12.5 Kilo-blindpower
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Width -
44 Millimetre
ABB

Availability On Request

£81.39
