1SBL241022R8610

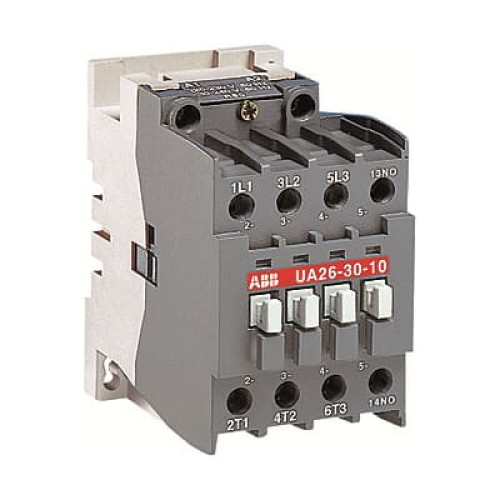

UA26-30-10 400-415V 50Hz / 415-440V 60Hz Contactor

Manufacturer's No: UA26-30-10     Manufacturer: ABB
UA26-30-10 400-415V 50Hz / 415-440V 60Hz Contactor

Availability Available to order

£134.96
  • UA26-30-10 3-pole contactor for capacitor switching
  • Operational voltage: 400-415V 50Hz / 415-440V 60Hz
  • Suitable for switching capacitor banks with inrush current peaks ? 100 times nominal rms current
  • Electrical durability: 100,000 operating cycles
  • Block type design with 3 main poles and 1 built-in auxiliary contact
  • Control circuit: AC operated with laminated magnet circuit
  • Maximum residual voltage at terminals: ? 50V
  • Accessories: wide range available


Product

Manufacturer Material ID -
UA26-30-10
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Depth -
93.6 Millimetre
Height -
90 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated blind power at 400 V, 50 Hz -
20 Kilo-blindpower
Rated blind power at 400 V, 60 Hz -
20 Kilo-blindpower
Rated control supply voltage at AC 50 Hz -
400 Volt
Rated control supply voltage at AC 60 Hz -
415 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Width -
54 Millimetre
ABB

Availability Available to order

£134.96
