1SBL411022R8800

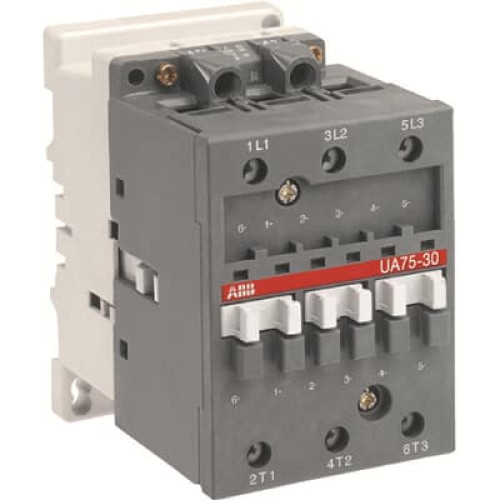

UA75-30-00 230-240V 50Hz / 240-260V 60Hz Contactor

Manufacturer's No: UA75-30-00     Manufacturer: ABB
UA75-30-00 230-240V 50Hz / 240-260V 60Hz Contactor

Availability Back Order

£441.60
  • Model: UA75-30-00
  • Voltage: 230-240V 50Hz / 240-260V 60Hz
  • Configuration: 3-pole contactor
  • Application: Designed for capacitor switching
  • Inrush Current: Suitable for capacitor banks with inrush current peaks ? 100 times nominal rms current
  • Electrical Durability: 100,000 operating cycles
  • Design: Block type design with 3 main poles
  • Control Circuit: AC operated with laminated magnet circuit
  • Accessories: Wide range of accessories available


Product

Manufacturer Material ID -
UA75-30-00
Net Weight -
1.16kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
240 Volt
Depth -
108 Millimetre
Height -
110 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated blind power at 400 V, 50 Hz -
50 Kilo-blindpower
Rated blind power at 400 V, 60 Hz -
50 Kilo-blindpower
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
240 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Width -
70 Millimetre
