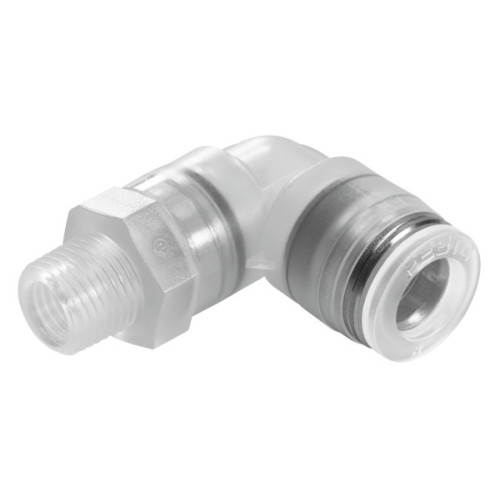

NPQP-L-R18-Q8-FD-P10 Push-in L-fitting

Manufacturer's No: NPQP-L-R18-Q8-FD-P10     Manufacturer: Festo
NPQP-L-R18-Q8-FD-P10 Push-in L-fitting

Availability Available to order

£9.36
  • Push-in L-fitting NPQP-L-R18-Q8-FD-P10
  • Resistant to media
  • L-shape design with external hexagon
  • Male thread R1/8 for tubing O.D. 8 mm
  • Food-safe and suitable for high corrosion stress
  • Operating pressure range: -0.95 BAR to 10 BAR
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Lubricated operation possible
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature range: -20°C to 60°C

Read more

  • Product weight: 7 g
  • Material: Housing made of PP, tubing clamp component made of high-alloy stainless steel
  • RoHS-compliant materials
  • Package quantity: 10 pieces
  • Size: Standard, nominal size 4.7 mm
  • Design based on push-pull principle
  • Type of mounting: External hexagon, size 14 mm


Product

Manufacturer Material ID -
NPQP-L-R18-Q8-FD-P10
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
39174000
Country of Origin -
JP
UNSPSC -
41111926

Technical Specification

Max. output current -
- Milliampere
Switching frequency -
- Hertz
Type of analogy output -
UN
Blind zone -
- Millimetre
Setting procedure -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Standard for interfaces -
UN
Relative linearity deflection -
- Percentage
Relative repeat accuracy -
- Percentage
Supply voltage -
- Volt
Material active area of sensor -
UN
Material of cable sheath -
UN
AWG-number -
-
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Adjustable distance -
- Millimetre
Material housing -
Brass
Diameter sensor -
18 Millimetre
Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Housing material -
Brass
Length of sensor -
75 Millimetre
Measuring range length -
30 Millimetre
No load current -
50 Milliampere
Type of electric connection -
Connector M12
Type of switch function -
Other
Type of switching output -
Other
Voltage type -
DC
Festo

Availability Available to order

£9.36
