2CKA006197A0049

UD/S6.210.2.1 LED-Dim actuator 6x210W

Manufacturer's No: UD/S6.210.2.1     Manufacturer: ABB

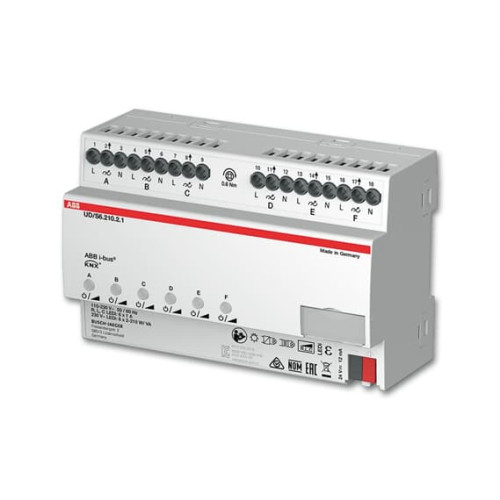

UD/S6.210.2.1 LED-Dim actuator 6x210W

Availability On Request

£792.96
  • Multichannel universal dimming actuator for LED lamps and various types of halogen and incandescent lamps
  • Automatic load detection with option to deactivate
  • Separate N-connection per channel
  • Outputs can be connected in parallel to increase output power
  • Minimum load requirement: 2 W
  • Manual operation on device possible without bus voltage
  • Programming possible without applied 230V supply voltage
  • Extensive test and diagnosis functions for i-Bus tool
  • Fast parameter setting in ETS using copyable channel templates
  • Nominal power at 230 V~ mains voltage: 6 x 210 W/VA to 1 x 800 W/VA for incandescent and halogen lamps

Read more

  • Dimmable LEDi: 6 x 210 W/VA to 1 x 800 W/VA in trailing edge control, 6 x 80 W/VA to 1 x 240 W/VA in leading edge control
  • Compatible with inductive L-transformers, electronic C-transformers, and electronic LC-transformers for LED/low-voltage halogen lamps


Product

Manufacturer Material ID -
UD/S6.210.2.1
Net Weight -
0.58kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Bus system KNX -
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Local operation/hand operation -
Minimum depth of back box -
63.5 Millimetre
Model -
Dimming actuator
Mounting method -
DRA (DIN-rail adapter)
Number of outputs -
6
Other bus systems -
None
Output power -
2 Watt
Parallel-service possible -
Type of load -
Universal and LED Retrofit
Voltage -
110 Volt
Width in number of modular spacings -
8
ABB

Availability On Request

£792.96
