2CDG110071R0011

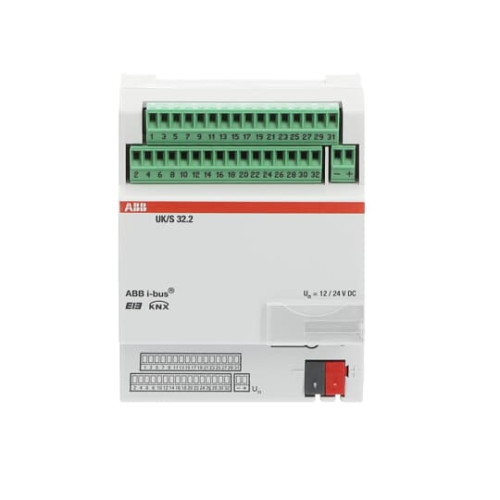

UK/S32.2 Universal I/O Concentrator, 32-fold, MDRC

Manufacturer's No: UK/S32.2     Manufacturer: ABB
UK/S32.2 Universal I/O Concentrator, 32-fold, MDRC

Availability On Request

£689.01
  • UK/S32.2 Universal I/O Concentrator
  • 32 channels for connecting push buttons or signal lamps to ABB i-bus®
  • MDRC format
  • Channels can be freely parameterised as inputs/outputs using ETS software
  • Requires external 12/24 V DC auxiliary power supply


Product

Manufacturer Material ID -
UK/S32.2
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Output power -
- Voltampere
Type of current -
DC
Rated current -
0.04 Ampere
Rated operating voltage -
10 Volt
Switching current (resistive) -
0.08 Ampere
Number of switch inputs -
32
Degree of protection (IP) -
IP20
Max. number of venetian-blind outputs -
0
With LED indication -
Bus system KNX -
Current type -
DC
Degree of protection (IP rating) -
IP20
Input voltage -
12 Volt
LED controlling -
Max. number of switching contacts -
32
Max. switching current -
0.08 Ampere
Max. switching power -
2 Voltampere
Mounting method -
DRA (DIN-rail adapter)
Number of input channels -
32
Number of inputs -
32
Number of output channels -
32
Other bus systems -
None
Remote operation possible -
Width in number of modular spacings -
4
With switch function -
ABB

Availability On Request

£689.01
