2CDG110065R0011

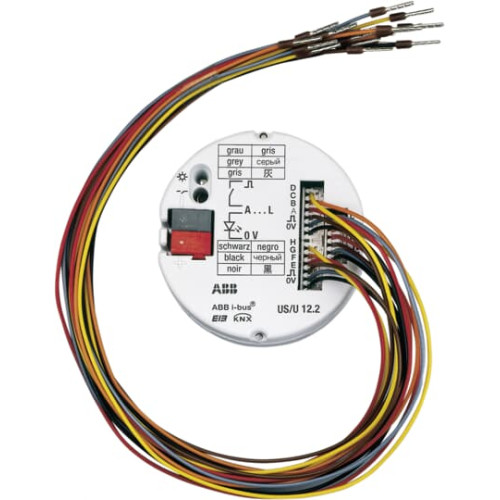

US/U12.2 Universal Interface, 12-fold, FM

Manufacturer's No: US/U12.2     Manufacturer: ABB
US/U12.2 Universal Interface, 12-fold, FM

Availability On Request

£249.87
  • US/U12.2 Universal Interface
  • 12 channels can be configured as inputs or outputs
  • Suitable for connecting push-buttons or LEDs
  • LEDs supplied by the device with 1.5 mA
  • Integrated series resistances
  • Requires ETS2 V1.2 or later
  • Mounts in a 60mm diameter installation box
  • Accessibility for operation, testing, inspection, maintenance, and repair must be ensured


Product

Manufacturer Material ID -
US/U12.2
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Width in number of modular spacings -
-
Type of voltage (input voltage) -
UN
Input voltage -
- Volt
Number of inputs -
12
Degree of protection (IP) -
IP20
Different phases connectable -
Bus system KNX -
Current type -
DC
Degree of protection (IP rating) -
IP20
External signal voltage necessary -
LED controlling -
Max. number of switching contacts -
12
Mounting method -
Flush mounted
Other bus systems -
None
ABB

Availability On Request

£249.87
