GHQ6310070R0111

US/U4.2 Universal Interface, 4-fold, FM

Manufacturer's No: US/U4.2     Manufacturer: ABB

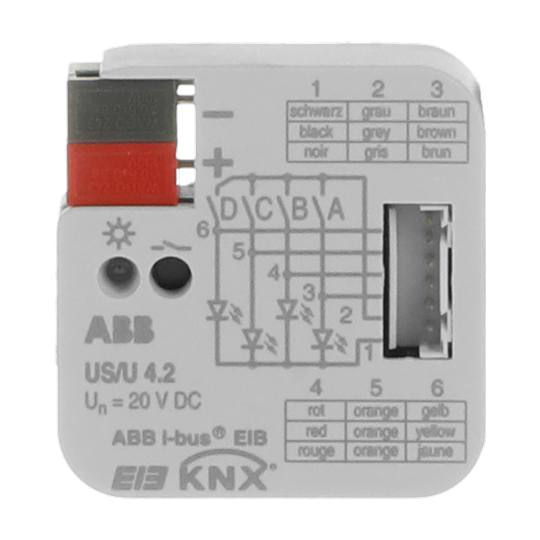

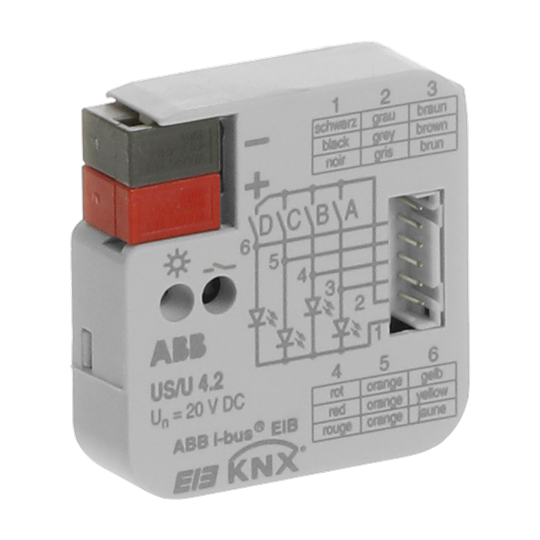

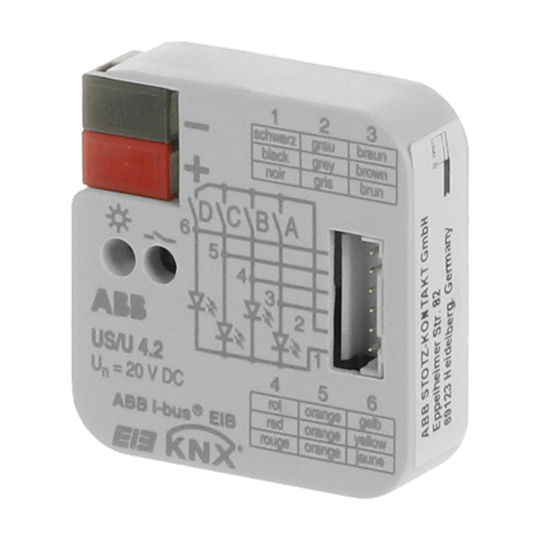

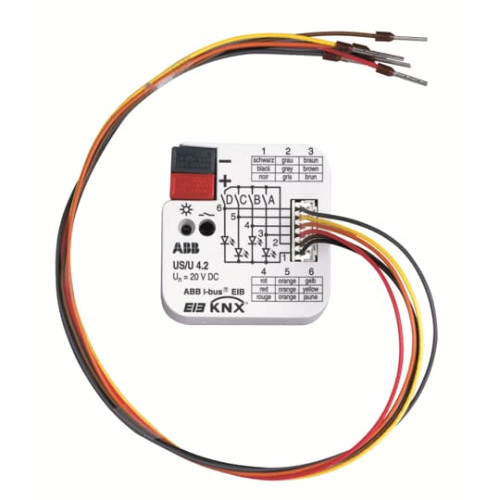

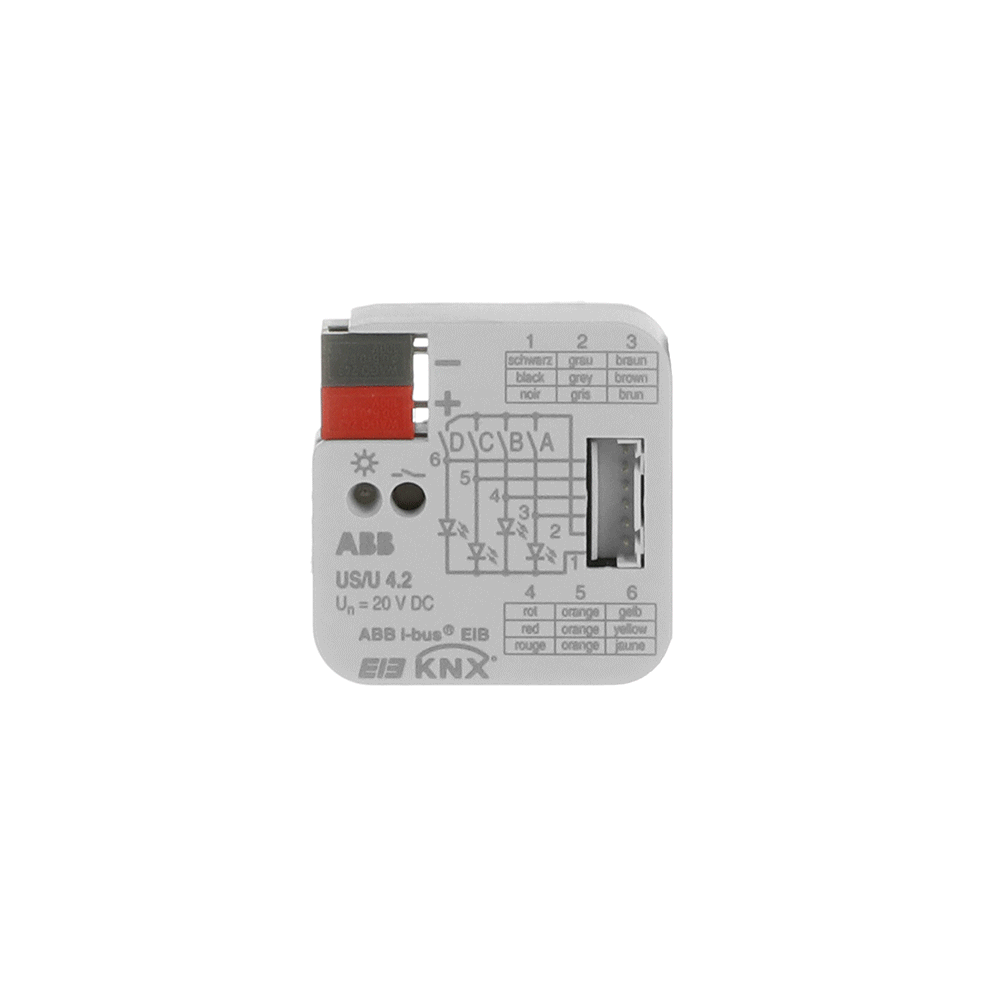

US/U4.2 Universal Interface, 4-fold, FM

Availability Available to order

POA
  • US/U4.2 Universal Interface
    • 4 channels
    • Channels can be set as inputs or outputs
    • Compatible with conventional push-buttons, auxiliary contacts, LEDs, and electronic relays ER/U 1.1
    • Requires ETS2 V1.2 or later
    • Mounts in a 60mm diameter installation box
    • Easy accessibility for operation, testing, inspection, maintenance, and repair


Product

Manufacturer Material ID -
US/U4.2
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Width in number of modular spacings -
-
Type of voltage (input voltage) -
UN
Input voltage -
- Volt
Number of inputs -
4
Degree of protection (IP) -
IP20
Different phases connectable -
Bus system KNX -
Current type -
DC
Degree of protection (IP rating) -
IP20
External signal voltage necessary -
Max. number of switching contacts -
4
Max. switching current -
6 Ampere
Max. switching power -
400 Voltampere
Mounting method -
Flush mounted
Other bus systems -
None
