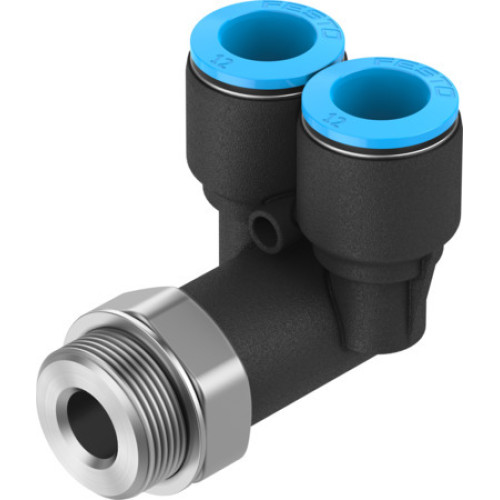

QSYL-G1/8-4 Push-in Y-fitting

Manufacturer's No: QSYL-G1/8-4     Manufacturer: Festo
QSYL-G1/8-4 Push-in Y-fitting

Availability Available to order

£5.80
  • Push-in Y-fitting QSYL-G1/8-4
  • L-shape, 2-way, parallel design
  • Male thread G1/8 for tubing O.D. 4mm
  • Operating pressure range: -0.095 MPa to 6.0 MPa
  • Temperature-dependent operating pressure range: -0.095 MPa to 14 MPa
  • Suitable for water up to 0.6 MPa at 50°C
  • Operating medium: Compressed air and water
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Cleanroom class: Class 4 according to ISO 14644-1
  • Ambient temperature range: -10°C to 80°C

Read more

  • Nominal torque: 5.4 Nm
  • Product weight: 16g
  • Number of outputs: 2, Number of supply lines: 1
  • Material: Nickel-plated brass screwed plug, RoHS-compliant
  • Housing material: PBT, Release ring material: POM
  • Tubing seal material: NBR, Tubing clamp component material: High-alloy stainless steel
  • Colour of release ring: Blue
  • Mounting type: External hexagon, A/F 13mm
  • Note: Lubricated operation possible, G-thread for water requires sealing ring type OL as additional accessory


Product

Manufacturer Material ID -
QSYL-G1/8-4
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
26121629

Technical Specification

Rated voltage -
- Volt
Type of cable -
UN
Permitted cable outer temperature during assembling/handling -
- Degrees celsius
Permitted cable outer temperature after assembling without vibration -
- Degrees celsius
Continuity resistor -
- Milli-Ohm
Material of contact surface -
UN
Degree of protection (IP) -
UN
Rated current In -
- Ampere
Material contact body -
CuSn
Cable length -
40 Metre
Colour cable sheath -
Grey
Degree of protection (IP rating) -
IP68
Material of cable sheath -
Polyurethane (PUR)
Number of poles -
4
Positioning cable feed, box-sided -
Straight
Positioning cable feed, field-sided -
Angled
Type of electrical connection, box-sided -
M12
Type of electrical connection, field-sided -
M12
Type of plug-in contact, box-sided -
Female (bus)
Type of plug-in contact, field sided -
Male (plug)
Festo

Availability Available to order

£5.80
