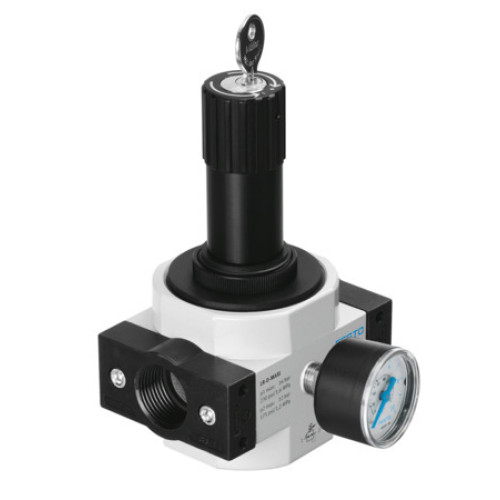

LRS-1/4-D-7-MINI Pressure regulator

Manufacturer's No: LRS-1/4-D-7-MINI     Manufacturer: Festo
LRS-1/4-D-7-MINI Pressure regulator

Availability Available to order

£218.69
  • Pressure regulator LRS-1/4-D-7-MINI
  • Lockable regulator head
  • Working pressure up to 7 bar
  • Size: Mini
  • Series: D
  • Actuator lock: Rotary knob with integrated lock
  • Design: Directly-controlled diaphragm regulator
  • Controller function: Output pressure constant
  • Controller function: Via primary pressure compensation
  • Controller function: With secondary venting

Read more

  • Pressure gauge or Pressure display: With pressure gauge
  • Operating pressure: 0.1 MPa to 16 bar
  • Pressure regulation range: 0.5 bar to 7 bar
  • Max. pressure hysteresis: 0.02 MPa to 2.9 psi
  • Standard nominal flow rate: 1600 L/min
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
  • Note on operating and pilot medium: Lubricated operation possible
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
  • Media temperature: -10°C to 60°C
  • Ambient temperature: -10°C to 60°C
  • Product weight: 520 g
  • Type of mounting: Front panel mounting, In-line installation, With accessories
  • Pneumatic connection, port 1 and port 2: G1/4
  • Materials: RoHS-compliant, Die-cast zinc sub-base and housing, NBR seals


Product

Manufacturer Material ID -
LRS-1/4-D-7-MINI
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
84811099
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
32151701

Technical Specification

Input current at signal 1 -
- Milliampere
Number of digital inputs -
-
Time delay at signal exchange -
- Millisecond
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Type of voltage (input voltage) -
UN
Output current -
- Ampere
Degree of protection (IP) -
UN
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
-
Number of HW-interfaces Wireless -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
Degree of protection (IP rating) -
IP67
Depth -
118 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
35 Millimetre
Number of digital outputs -
4
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Supporting protocol for ASI -
Type of digital output -
Other
Type of electric connection -
Insulation piercing connection
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Width -
57.4 Millimetre
