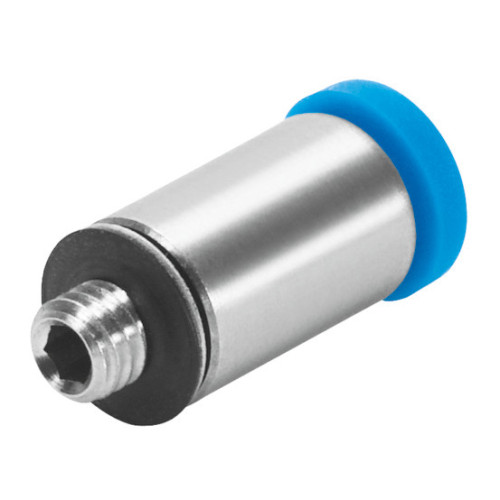

QSM-M3-3-I-R-100 Push-in fitting

Manufacturer's No: QSM-M3-3-I-R-100     Manufacturer: Festo
QSM-M3-3-I-R-100 Push-in fitting

Availability Available to order

£2.49
  • Push-in fitting QSM-M3-3-I-R-100
  • Mini series, straight design with round releasing ring
  • Male thread M3 for tubing O.D. 3mm
  • Package quantity: 100 pieces
  • Operating pressure range: -0.095 MPa to 6 bar
  • Temperature-dependent operating pressure: -0.095 MPa to 203 psi
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Ambient temperature range: -10°C to 80°C
  • Nominal torque: 0.48 Nm with ±55% tolerance

Read more

  • Product weight: 2.3 g
  • Material: Nickel-plated steel housing, POM release ring, NBR tubing seal, High-alloy stainless steel tubing clamp component
  • Colour of release ring: Blue
  • RoHS-compliant materials
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Note: Lubricated operation possible, internal hexagon mounting, A/F 1.5 mm


Product

Manufacturer Material ID -
QSM-M3-3-I-R-100
Net Weight -

Additional Product Information

Commodity Code -
73072910
Country of Origin -
JP
UNSPSC -
41111926

Technical Specification

Strip range AWG -
-
Strip range diameter -
- Millimetre
Strip range cross-section -
- Square millimetre
Festo

Availability Available to order

£2.49
