GJL1311901R8104

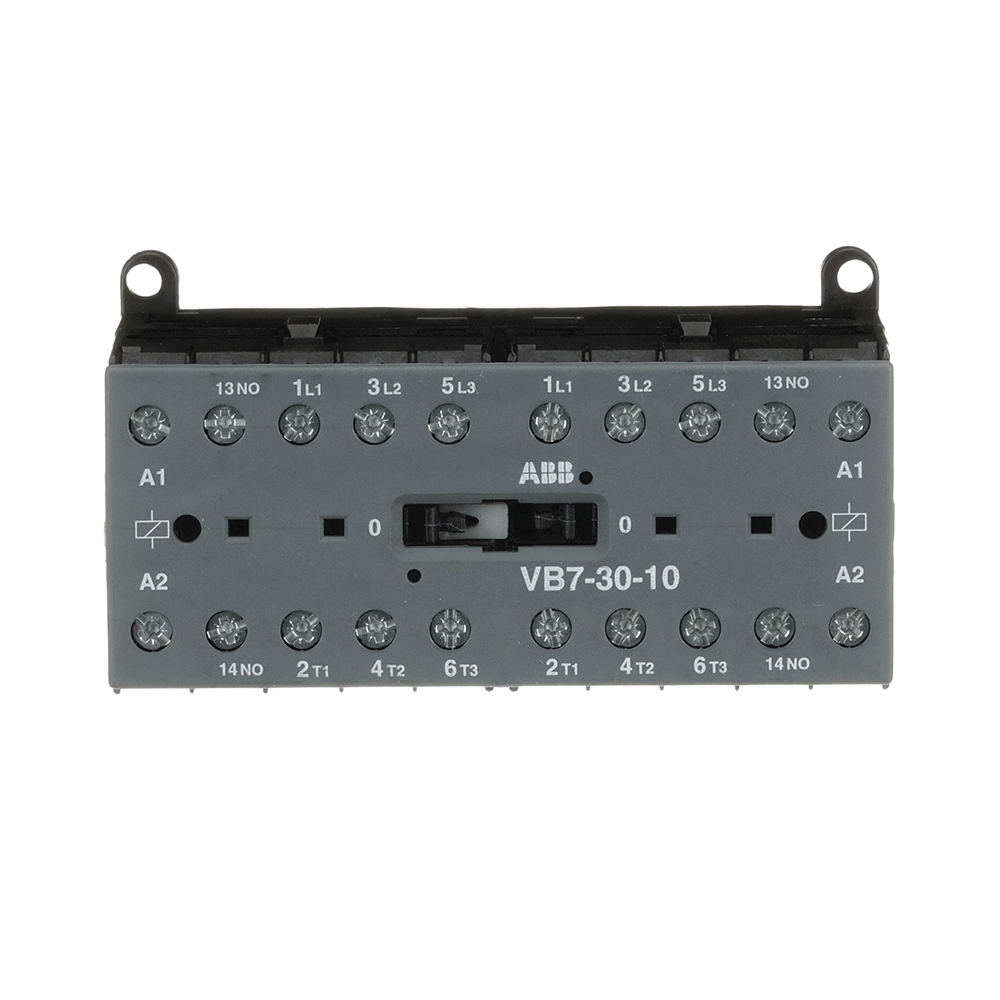

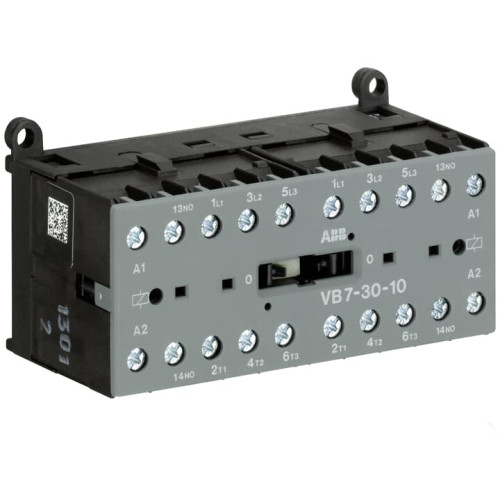

VB7-30-10-84 Mini Reversing Contactor 110 ... 127 V AC - 3 NO - 0 NC - Screw Terminals

Manufacturer's No: VB7-30-10     Manufacturer: ABB
VB7-30-10-84 Mini Reversing Contactor 110 ... 127 V AC - 3 NO - 0 NC - Screw Terminals

Availability Back Order

£103.75
  • Model: VB7-30-10-84 Mini Reversing Contactor
  • Voltage: 110-127 V AC
  • Configuration: 3 Normally Open (NO) contacts, 0 Normally Closed (NC) contacts
  • Terminals: Screw terminals
  • Compact 3-pole contactor with 1 auxiliary contact
  • Ideal for applications requiring reliability in limited space
  • Suitable for controlling three-phase motor loads up to 5.5 kW (AC-3)
  • Features silent coil, switch position indication, and integrated rail or wall mounting option


Product

Manufacturer Material ID -
VB7-30-10
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
1
Depth -
46.7 Millimetre
Function -
Reversing safety
Height -
57.5 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rail mounting possible -
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated operation current Ie at AC-1, 400 V -
6 Ampere
Rated operation current Ie at AC-3, 400 V -
12 Ampere
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated operation power NEMA -
2.2371 Kilowatt
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Width -
96.2 Millimetre
ABB

Availability Back Order

£103.75
