50040826

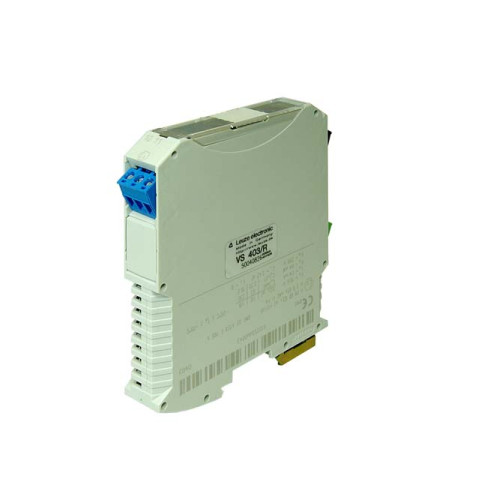

The Amplifier from . Switching frequency: 15 Hz; Supply voltage: 18 ... 31,2 V, DC; Number of digital switching outputs: 2 Piece(s

Manufacturer's No: VS 403/R     Manufacturer: Leuze
The Amplifier from . Switching frequency: 15 Hz; Supply voltage: 18 ... 31,2 V, DC; Number of digital switching outputs: 2 Piece(s); Type of interface: NAMUR; Ex device group: II; Ignition protectio

Availability Back Order

£741.00
  • Supply Voltage: 18 - 31.2 V DC
  • Number of Digital Switching Outputs: 2
  • Switching Frequency: 15 Hz
  • Interface Type: NAMUR
  • Ex Device Group: II
  • Ignition Protection Type: "ia" Intrinsically Safe
  • Degree of Protection: IP 20 (Terminals), IP 30 (Housing)
  • Ex-Standard: EN 50014, EN 50020, EN 50021, EN 50281-1-1, EN 50284

Others



Product

Manufacturer Material ID -
VS 403/R
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Construction type of device -
Built-in device
Degree of protection (IP rating) -
IP20
Depth -
112 Millimetre
Height -
99.5 Millimetre
Mounting method -
Snap mounting support rail
Operating temperature -
-20 Degrees celsius
Performance level acc. to EN ISO 13849-1 -
None
Rated supply voltage at DC -
18 Volt
Switching frequency -
15 Hertz
Type of electric connection -
Screw connection
Type of power supply -
Active
Width -
18 Millimetre
Leuze

Availability Back Order

£741.00
