3063099

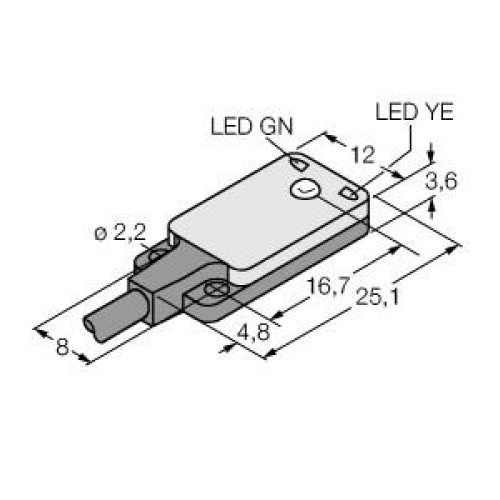

VS2 Series: Sensor Pair, Range: 1.2 m max, Input: 12-24 V dc, Receiver Output: NPN Light Operate, 3-pin M8 Pigtail QD

Manufacturer's No: VS2KAN5VQ     Manufacturer: Turck Banner
VS2 Series: Sensor Pair, Range: 1.2 m max, Input: 12-24 V dc, Receiver Output: NPN Light Operate, 3-pin M8 Pigtail QD

Availability On Request

£176.03
  • Photoelectric sensor in opposed mode (emitter/receiver)
  • Miniature sensor with ultra flat design
  • Operating voltage: 10-30 VDC
  • Max. range: 1200 mm
  • Cable length: 0.15 m, with male end
  • Connector type: M8 x 1, 3-pin, PVC
  • NPN switching output for light operation


Product

Manufacturer Material ID -
VS2KAN5VQ
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
25.1 Millimetre
Housing material -
Plastic
Length of sensor -
4.7 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
1200 Millimetre
Rated switching distance -
1200 Millimetre
Reaction time -
1 Millisecond
Switching frequency -
500 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Wavelength of the sensor -
660 Nanometre
Width sensor -
12 Millimetre
