3062619

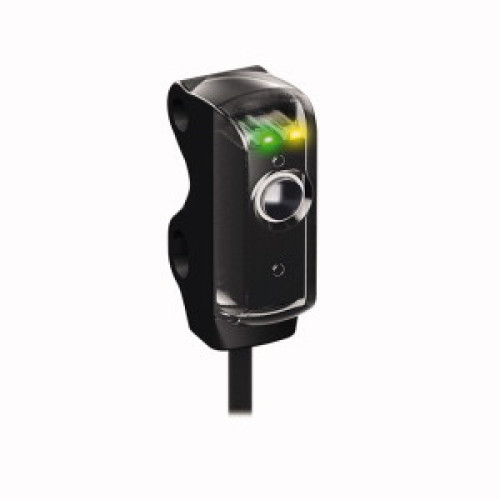

VS3 Series: Polarized Retro, Range: 250, Input: 10-30 V dc, Output: NPN Light Operate, 2 m (6.5 ft) Cable

Manufacturer's No: VS3AN5XLP     Manufacturer: Turck Banner
VS3 Series: Polarized Retro, Range: 250, Input: 10-30 V dc, Output: NPN Light Operate, 2 m (6.5 ft) Cable

Availability On Request

£143.36
  • Photoelectric sensor with polarizing filter
  • Retroreflective sensor with coaxial optics
  • Miniature sensor with a max. range of 250 mm
  • Operating voltage: 10-30 VDC
  • NPN switching output
  • Cable length: 2 m
  • No blind zone
  • Suitable for light operation


Product

Manufacturer Material ID -
VS3AN5XLP
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

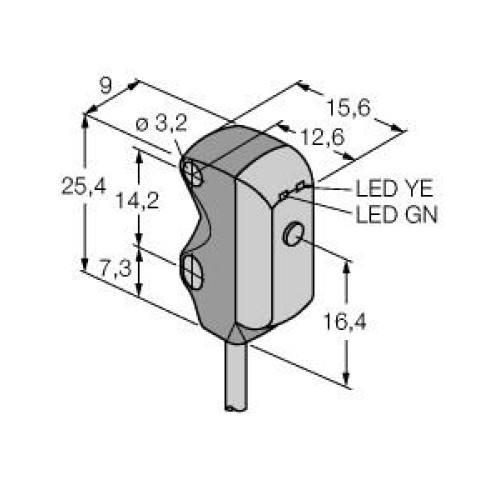

Height of sensor -
25.4 Millimetre
Housing material -
Plastic
Length of sensor -
16.6 Millimetre
Material of optical surface -
Glass
Max. switching distance -
250 Millimetre
Rated switching distance -
250 Millimetre
Reaction time -
1 Millisecond
Sensing mode -
Light switching
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
9 Millimetre
Turck Banner

Availability On Request

£143.36
