3063714

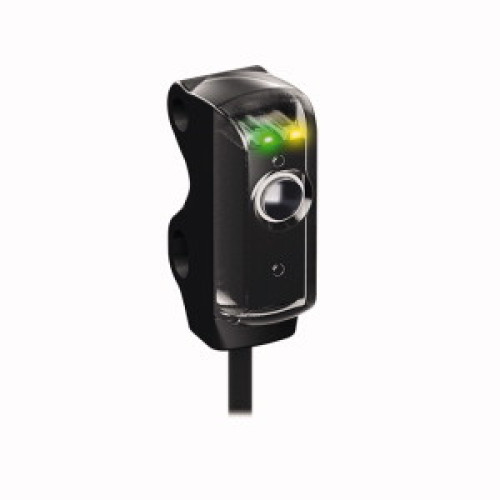

VS3 Series: Non-Polarized Retro, Range: 250, Input: 10-30 V dc, Output: NPN Dark Operate, 3-pin M8 QD

Manufacturer's No: VS3RN5XLVQ     Manufacturer: Turck Banner
VS3 Series: Non-Polarized Retro, Range: 250, Input: 10-30 V dc, Output: NPN Dark Operate, 3-pin M8 QD

Availability On Request

£131.57
  • Photoelectric Sensor
  • Retroreflective Sensor
  • Miniature Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 250 mm
  • Cable Length: 0.15 m
  • Male M8 x 1; 3-pin
  • Coaxial Optics
  • No blind zone
  • NPN switching output

Read more

  • Dark operation


Product

Manufacturer Material ID -
VS3RN5XLVQ
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
25.4 Millimetre
Housing material -
Plastic
Length of sensor -
16.6 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
250 Millimetre
Rated switching distance -
250 Millimetre
Reaction time -
1 Millisecond
Sensing mode -
Dark switching
Switching frequency -
500 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
9 Millimetre
Turck Banner

Availability On Request

£131.57
