3062626

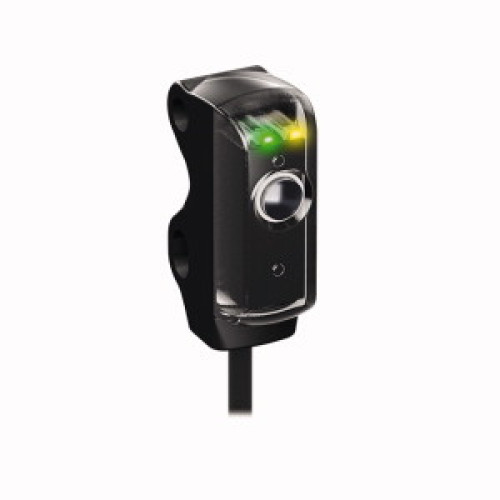

VS3 Series: Polarized Retro; Range: 250 mm; Input: 10 to 30 V dc; Output: PNP Dark Operate; Pico M8 3pin Pigtail QD;

Manufacturer's No: VS3RP5XLPQ
VS3 Series: Polarized Retro; Range: 250 mm; Input: 10 to 30 V dc; Output: PNP Dark Operate; Pico M8 3pin Pigtail QD;

Availability Back Order

£163.33
  • Series: VS3 Polarized Retro
  • Sensing Range: 250 mm
  • Input Voltage: 10-30 V DC
  • Output Type: PNP Dark Operate
  • Connector Type: Pico M8 3-pin Pigtail QD


Product

Manufacturer Material ID -
VS3RP5XLPQ
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
25.4 Millimetre
Housing material -
Plastic
Length of sensor -
16.6 Millimetre
Material of optical surface -
Glass
Max. switching distance -
250 Millimetre
Rated switching distance -
250 Millimetre
Reaction time -
1 Millisecond
Sensing mode -
Dark switching
Switching frequency -
500 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
680 Nanometre
Width sensor -
9 Millimetre


Availability Back Order

£163.33
