3063717

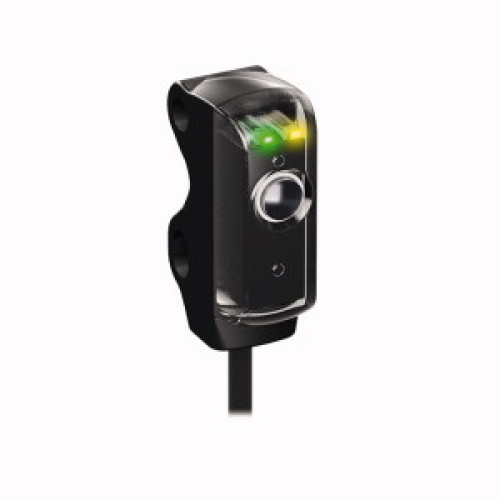

VS3 Series: Non-Polarized Retro, Range: 250, Input: 10-30 V dc, Output: PNP Dark Operate, 2 m (6.5 ft) Cable

Manufacturer's No: VS3RP5XLV     Manufacturer: Turck Banner
VS3 Series: Non-Polarized Retro, Range: 250, Input: 10-30 V dc, Output: PNP Dark Operate, 2 m (6.5 ft) Cable

Availability On Request

£131.57
  • Photoelectric sensor with retroreflective design
  • Miniature sensor with coaxial optics
  • Operating voltage: 10-30 VDC
  • Maximum range: 250 mm
  • Cable length: 2 m
  • 3-wire PNP switching output
  • Dark operation with no blind zone


Product

Manufacturer Material ID -
VS3RP5XLV
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

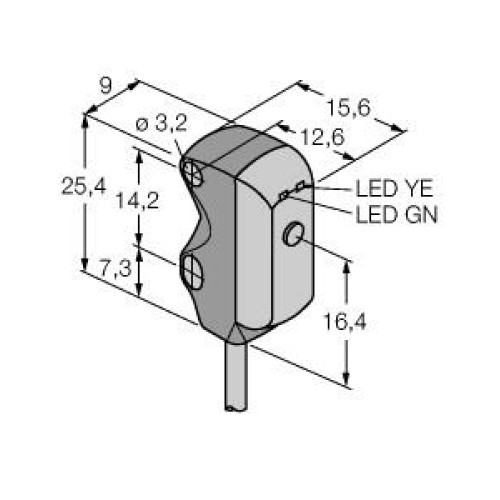

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
25.4 Millimetre
Housing material -
Plastic
Length of sensor -
16.6 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
250 Millimetre
Rated switching distance -
250 Millimetre
Reaction time -
1 Millisecond
Sensing mode -
Dark switching
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
680 Nanometre
Width sensor -
9 Millimetre
Turck Banner

Availability On Request

£131.57
