3069430

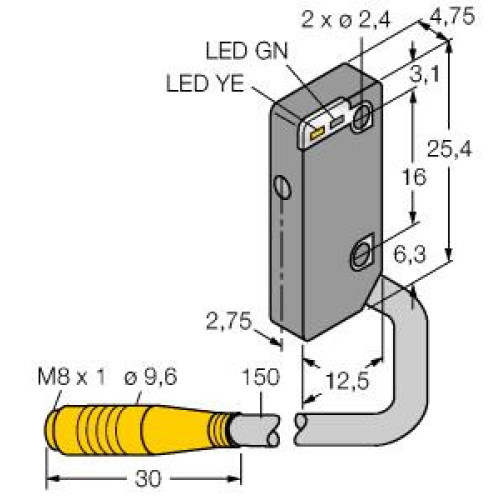

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Miniature Sensor

Manufacturer's No: VS4AP5RQ     Manufacturer: Turck Banner
Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Miniature Sensor

Availability On Request

POA
  • Photoelectric Sensor in Opposed Mode (Emitter/Receiver)
  • Miniature sensor with a flat design
  • Operating voltage: 10-30 VDC
  • Max. range: 1000 mm
  • Cable length: 0.15 m, with male end, PVC material
  • Connector type: M8 x 1, 3-pin, 150 mm
  • Protection class: IP67
  • PNP switching output for light operation


Product

Manufacturer Material ID -
VS4AP5RQ
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
25.4 Millimetre
Housing material -
Plastic
Length of sensor -
12.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
1000 Millimetre
Rated switching distance -
1000 Millimetre
Reaction time -
1 Millisecond
Sensing mode -
Light switching
Switching frequency -
660 Hertz
Type of electric connection -
Connector M8
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
4.75 Millimetre
Turck Banner

Availability On Request

POA
