3013317

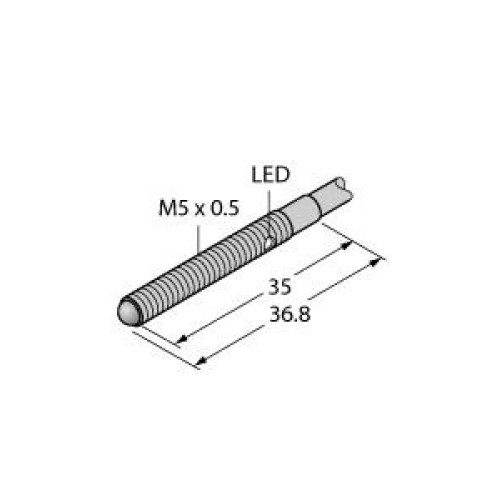

Photoelectric Sensor, Opposed Mode Sensor (Emitter), Miniature Sensor

Manufacturer's No: VSM56E     Manufacturer: Turck Banner
Photoelectric Sensor, Opposed Mode Sensor (Emitter), Miniature Sensor

Availability Available to order

POA
  • Type: Photoelectric Sensor (Opposed Mode, Emitter)
  • Size: Miniature
  • Operating Voltage: 10-30 VDC
  • Max. Range: 250 mm
  • Housing Material: Stainless Steel (V2A)
  • Protection Class: IP67
  • Cable Length: 2 m, 2-wire
  • Lens Material: Sapphire Crystal Glass


Product

Manufacturer Material ID -
VSM56E
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
5 Millimetre
Housing material -
Metal
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Glass
Max. switching distance -
250 Millimetre
Rated switching distance -
250 Millimetre
Reaction time -
2.5 Millisecond
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
880 Nanometre
