Inductive Sensor, With Analog Output

Manufacturer's No: WI40-M18-LIU5     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output

Availability On Request

£247.86
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Measuring range: 0 mm to 40 mm

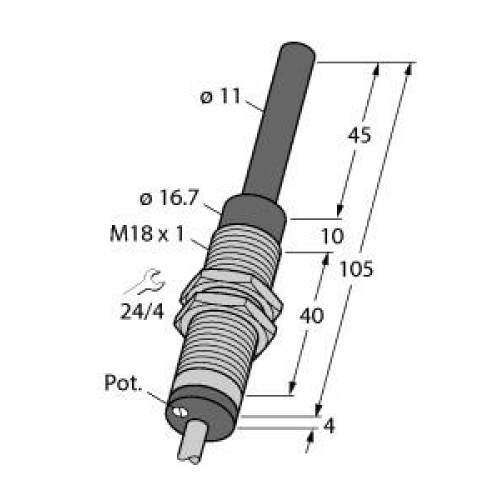

  • Non-flush design with threaded barrel, M18 x 1, made of chrome-plated brass
  • Potentiometer for characteristic adjustment
  • Actuated via short-circuiting ring, blind hole, or similar methods
  • 4-wire configuration
  • Analog output options: 0-10 V and 4-20 mA
  • Cable length: 2 m
  • Cable connection


Product

Manufacturer Material ID -
WI40-M18-LIU5
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Other
Length of sensor -
109 Millimetre
Limiting frequency -
40 Hertz
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
0 Millimetre
Mechanical mounting condition for sensor -
Not flat
Operating voltage -
15 Volt
Relative linearity deflection -
2 Percentage
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Cable
Turck Banner

Availability On Request

£247.86
