WTS10-12/20/105

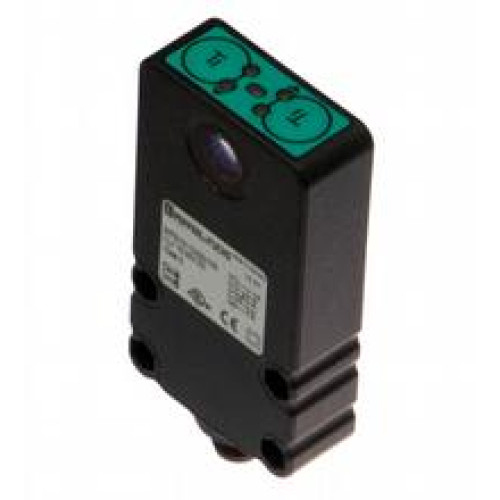

Diffuse mode sensor - Detection range: 2 ... 12 mm, Light source: LED, Light type: modulated visible red light , 640 nm, Signal ou

Manufacturer's No: 200958     Manufacturer: Pepperl+Fuchs
Diffuse mode sensor - Detection range: 2 ... 12 mm, Light source: LED, Light type: modulated visible red light , 640 nm, Signal output: 2 switch outputs PNP, NO short-circuit protected reverse pola..

Availability On Request

£340.36
  • Detection range: 2 - 12 mm
  • Light source: LED, modulated visible red light (640 nm)
  • Signal output: 2 switch outputs PNP, NO, short-circuit and reverse polarity protected
  • Switching type: light-on
  • Connection: 5-pin, M12 x 1 connector
  • Operating voltage: 10 - 30 V DC
  • Ambient temperature: 0 - 50 °C (32 - 122 °F)
  • Switching accuracy maintained if temperature after Teach-In varies less than ±7 °C


Product

Manufacturer Material ID -
200958
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£340.36
