1SEP600115R0003

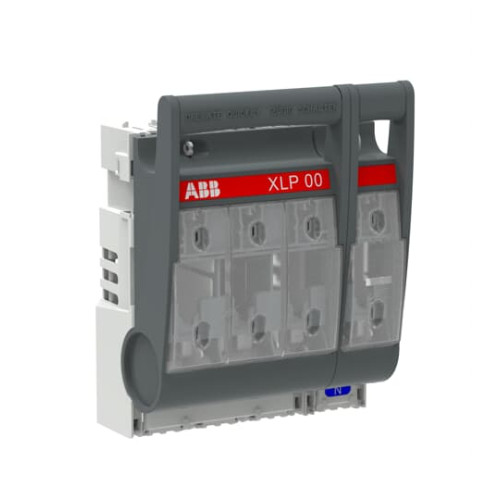

XLP00-4P-8M8 Fuse Switch Disconnector

Manufacturer's No: XLP00-4P-8M8     Manufacturer: ABB
XLP00-4P-8M8 Fuse Switch Disconnector

Availability On Request

£223.14
XLP00,4-pole,160A, incl. 8 x M8 bolts


Product

Manufacturer Material ID -
XLP00-4P-8M8
Net Weight -
0.91kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121627

Technical Specification

Cable entry -
UN
Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Conditioned rated short-circuit current Iq -
50 kiloampere
Degree of protection (IP), front side -
IP30
Equipped with connectors -
Max. rated operation voltage Ue AC -
500 Volt
Number of poles -
4
Position control element -
Front
Rated permanent current Iu -
160 Ampere
Suitable for busbar mounting -
Suitable for fuses -
NH000, NH00
Type of control element -
Other
Type of electrical connection of main circuit -
Bolt connection
Version as main switch -
Version as safety switch -
ABB

Availability On Request

£223.14
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
