7TCA091160R0499

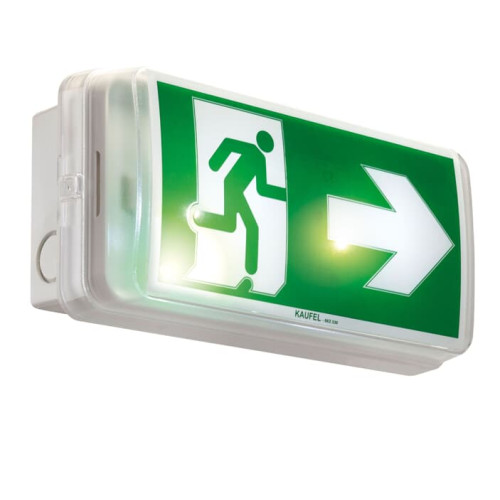

PRIMEVO EXIT & ESCAPE SIGN 100

Manufacturer's No: XT100E     Manufacturer: ABB
PRIMEVO EXIT & ESCAPE SIGN 100

Availability On Request

£42.11
  • Model: PRIMEVO EXIT & ESCAPE SIGN 100
  • Type: PrimEvo Bulkhead
  • Power Supply: 220-240 Vac, 50Hz
  • Light Source: 2 LED 1W
  • Brightness: 110 Lumens
  • Operating Temperature: 0-40°C


Product

Manufacturer Material ID -
XT100E
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
9405490000
Country of Origin -
FR
UNSPSC -
39101600

Technical Specification

Lamp included -
Energy efficiency class of integrated lamp -
A++, A+, A (LED)
Battery chemistry -
NiCd
Colour temperature -
6000 Kelvin
Conductor cross section -
1.5 Square millimetre
Connection type -
Screw connection
Control gear -
LED driver constant current
Cover material -
Plastic transparent
Degree of protection (IP rating) -
IP65
Function -
Escape route lighting/signage
Height/depth -
78 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK10
Labelling type -
Sticker
Length -
240 Millimetre
Light distribution -
Reflector
Light source included -
Light source type -
LED non-replaceable
Maximum system power -
2 Watt
Monitoring equipment -
Test button
Mounting method -
Surface mounting/recessed mounting
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lamps -
1
Number of lighting heads -
0
Number of poles -
2
Pictogram included -
Power factor -
0.4
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Rated luminous flux acc. IEC 62722-2-1 -
110 Lumen
Recess height/depth -
50 Millimetre
Recess length -
245 Millimetre
Recess width -
120 Millimetre
Type of cabling -
Suitable for through wiring
Type of indicator -
Single-sided
Viewing distance -
20 Metre
Voltage type -
AC
Width -
115 Millimetre
ABB

Availability On Request

£42.11
