1SDA074648R1

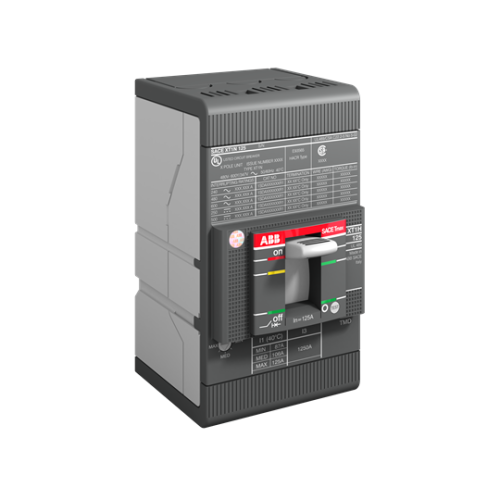

XT1N 125 TMF 125-1250 3p F F UL/CSA

Manufacturer's No: XT1N125TMF     Manufacturer: ABB
XT1N 125 TMF 125-1250 3p F F UL/CSA

Availability On Request

£417.79
  • Circuit Breaker Type: TMAX XT1N 125
  • Configuration: Three-pole
  • Terminals: Front terminals
  • Release Type: Thermomagnetic
  • Current Rating: 125-1250 A
  • UL/CSA Certified


Product

Manufacturer Material ID -
XT1N125TMF
Net Weight -
1.10kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Overload release current setting -
125 Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
25 kiloampere
Adjustment range undelayed short-circuit release -
1250 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
10.7 Watt
Rated permanent current Iu -
125 Ampere
Rated voltage -
347 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
