7TCA091720R0152

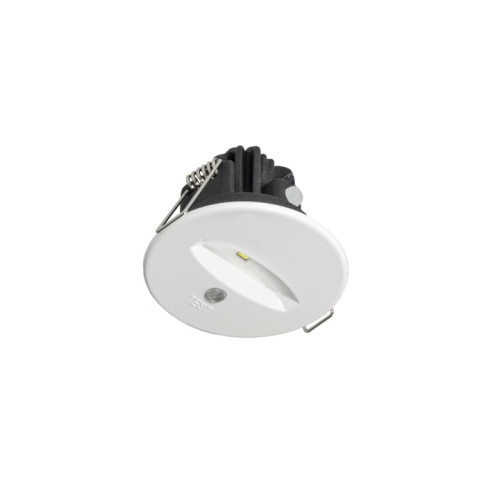

DALI LED ESC DOWN MAN AUTO TEST 3HR

Manufacturer's No: XT201M3HDALI     Manufacturer: ABB
DALI LED ESC DOWN MAN AUTO TEST 3HR

Availability On Request

£170.84
  • DALI LED emergency downlight
  • 3-hour battery backup
  • Designed for escape route lighting
  • Recessed installation
  • DALI control system integration
  • Optimal for emergency lighting in escape routes


Product

Manufacturer Material ID -
XT201M3HDALI
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
9405606000
Country of Origin -
CN
UNSPSC -
39101600

Technical Specification

Battery chemistry -
NiMH
Colour temperature -
6500 Kelvin
Conductor cross section -
2.5 Square millimetre
Connection type -
Other
Control gear -
LED driver constant current
Cover material -
Plastic transparent
Degree of protection (IP rating) -
IP20
Function -
Escape route lighting
Height/depth -
38 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK08
Length -
55 Millimetre
Light distribution -
Focal lens
Light source included -
Light source type -
LED non-replaceable
Maximum system power -
5 Watt
Monitoring equipment -
Safety module for monitoring (central feeded system)
Mounting method -
Built-in
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lamps -
1
Number of lighting heads -
1
Number of poles -
6
Outer diameter -
55 Millimetre
Power factor -
1
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Rated luminous flux acc. IEC 62722-2-1 -
150 Lumen
Recess height/depth -
38 Millimetre
Recess length -
360 Millimetre
Recess width -
40 Millimetre
Replaceable control gear -
Type of cabling -
Ending
Voltage type -
AC
Width -
40 Millimetre
ABB

Availability On Request

£170.84
