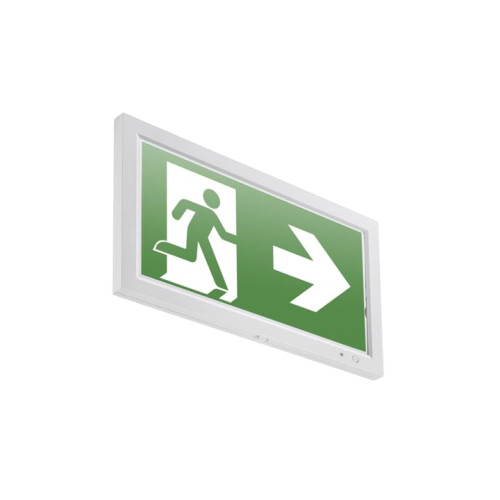

7TCA091720R0156

DALI LED EXIT SIGN 24M

Manufacturer's No: XT224SMDALI     Manufacturer: ABB
DALI LED EXIT SIGN  24M

Availability Back Order

£167.84
  • DALI LED Exit Sign
  • Surface mounted on wall
  • 3-hour battery backup
  • DALI compatible
  • Includes pictograms


Product

Manufacturer Material ID -
XT224SMDALI
Net Weight -
0.66kg

Additional Product Information

Commodity Code -
9405616000
Country of Origin -
CN
UNSPSC -
39101600

Technical Specification

Battery chemistry -
NiMH
Colour temperature -
5700 Kelvin
Conductor cross section -
2.5 Square millimetre
Connection type -
Other
Cover material -
Plastic opal
Degree of protection (IP rating) -
IP20
Function -
Escape route signage
Height/depth -
215 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK08
Labelling type -
Insert sheet/plate
Length -
273 Millimetre
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
32 Lumen
Maximum system power -
3.5 Watt
Monitoring equipment -
Safety module for monitoring (central feeded system)
Mounting method -
Wall surface mounted
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lamps -
1
Number of lighting heads -
1
Number of poles -
5
Pictogram included -
Power factor -
0.7
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
5 Degrees celsius
Replaceable control gear -
Type of cabling -
Ending
Type of indicator -
Single-sided
Viewing distance -
24 Metre
Voltage type -
AC
Width -
158 Millimetre
ABB

Availability Back Order

£167.84
