7TCA091720R0155

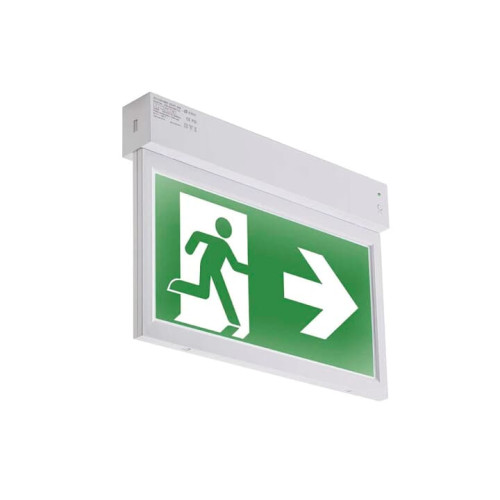

DALI LED EXIT SIGN 30M

Manufacturer's No: XT230RSDALI     Manufacturer: ABB
DALI LED EXIT SIGN  30M

Availability Back Order

£154.95
  • DALI LED Exit Sign
  • Surface mounted on ceiling
  • 3-hour emergency duration
  • DALI compatible
  • Includes pictograms


Product

Manufacturer Material ID -
XT230RSDALI
Net Weight -
1.20kg

Additional Product Information

Commodity Code -
9405490000
Country of Origin -
CN
UNSPSC -
55121703

Technical Specification

Battery chemistry -
NiMH
Colour temperature -
5700 Kelvin
Conductor cross section -
2.5 Square millimetre
Connection type -
Other
Control gear -
LED driver constant current
Cover material -
Plastic opal
Degree of protection (IP rating) -
IP20
Function -
Escape route signage
Height/depth -
45 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK08
Labelling type -
Insert sheet/plate
Length -
330 Millimetre
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
32 Lumen
Maximum system power -
3.5 Watt
Monitoring equipment -
Safety module for monitoring (central feeded system)
Mounting method -
Surface mounting/recessed mounting
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lamps -
1
Number of lighting heads -
1
Number of poles -
5
Pictogram included -
Power factor -
0.7
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
5 Degrees celsius
Replaceable control gear -
Type of cabling -
Ending
Type of indicator -
Single/double-sided
Viewing distance -
30 Metre
Voltage type -
AC
Width -
248 Millimetre
ABB

Availability Back Order

£154.95
