1SBL136001R2322

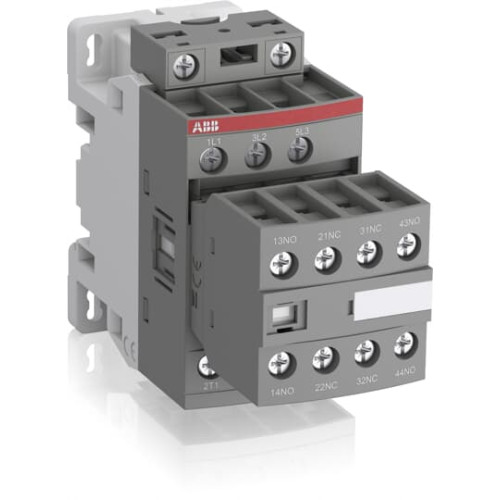

AF09Z-30-22-23 100-250V50/60HZ-DC Contactor

Manufacturer's No: AF09Z-30-22-23     Manufacturer: ABB
AF09Z-30-22-23 100-250V50/60HZ-DC Contactor

Availability On Request

£127.61
  • Model: AF09Z-30-22-23
  • 3-pole contactor
  • Voltage: 100-250V AC, 50/60Hz and DC
  • Maximum motor power: 4 kW / 400V AC or 5 hp / 480V UL
  • Maximum switching power: 25A AC-1 or 25A UL
  • Pre-mounted auxiliary contacts and screw terminals
  • Wide control voltage range for managing large variations
  • Built-in surge protection
  • Compact block type design
  • Compatible with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF09Z-30-22-23
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85364900
UNSPSC -
39121529

Technical Specification

Depth -
110.5 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
25 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated operation power NEMA -
1.4914 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability On Request

£127.61
