1SBL156001R3010

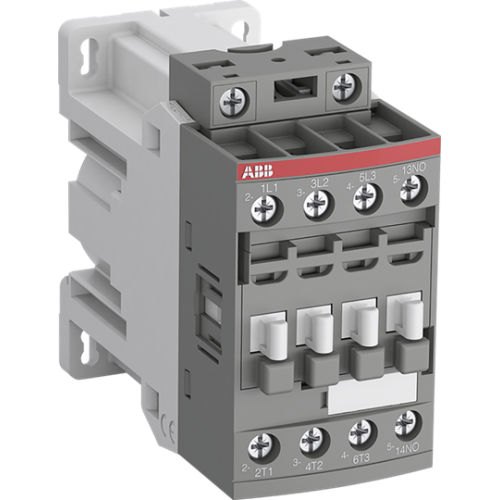

AF12Z-30-10-30 24VDC Contactor

Manufacturer's No: AF12Z-30-10-30     Manufacturer: ABB
AF12Z-30-10-30 24VDC Contactor

Availability On Request

£88.70
  • AF12Z-30-10-30 24VDC Contactor
  • 3-pole contactor
  • Rated for 690 V IEC or 600 V UL
  • Built-in auxiliary contact
  • Screw terminals
  • Controls motors up to 5.5 kW / 400 V AC or 7-1/2 hp / 480 V UL
  • Switches power circuits up to 28 A (AC-1) or 28 A UL
  • 24 V DC coil with reduced holding coil consumption (1.7 W)
  • Direct control by PLC-output ? 250 mA 24 V DC
  • Surge protection built-in

Read more

  • Compact design with block type design
  • Can be extended with add-on auxiliary contact blocks
  • Wide range of accessories available


Product

Manufacturer Material ID -
AF12Z-30-10-30
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
85364900
UNSPSC -
39121529

Technical Specification

Depth -
97 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
28 Ampere
Rated operation current Ie at AC-3, 400 V -
12 Ampere
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated operation power NEMA -
3.7285 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
45 Millimetre
ABB

Availability On Request

£88.70
