1SFL447262R1222

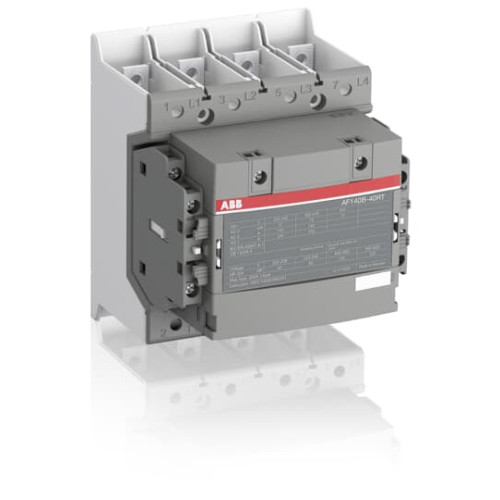

AF140B-40-22RT-12 Contactor

Manufacturer's No: AF140B-40-22RT     Manufacturer: ABB
AF140B-40-22RT-12 Contactor

Availability On Request

£644.50
  • Product: AF140B-40-22RT-12 Contactor
  • 4-pole contactor designed for railway applications
  • Suitable for motor starting, isolation, bypass, and distribution up to 690 V
  • Wide control voltage range: 48-130 V, 50/60 Hz, and DC


Product

Manufacturer Material ID -
AF140B-40-22RT
Net Weight -
2.15kg

Additional Product Information

Commodity Code -
85364900
UNSPSC -
39121521

Technical Specification

Depth -
128 Millimetre
Height -
150 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
48 Volt
Rated control supply voltage at AC 60 Hz -
48 Volt
Rated control supply voltage at DC -
48 Volt
Rated operation current Ie at AC-1, 400 V -
200 Ampere
Rated operation current Ie at AC-3, 400 V -
140 Ampere
Rated operation power at AC-3, 400 V -
75 Kilowatt
Rated operation power NEMA -
14.914 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
120 Millimetre
ABB

Availability On Request

£644.50
