1SBL236260R2200

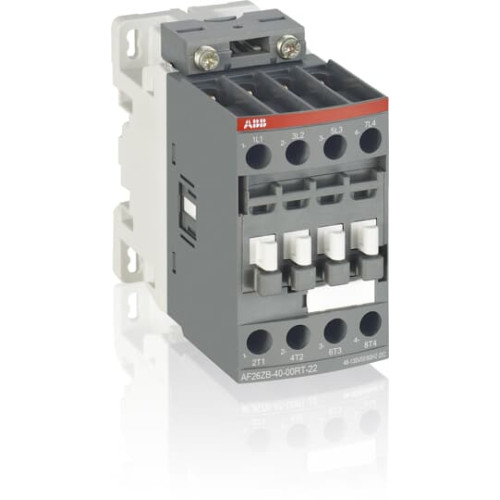

AF26ZB-40-00RT-22 48-130V50/60HZ-DC Contactor

Manufacturer's No: AF26ZB-40-00RT     Manufacturer: ABB
AF26ZB-40-00RT-22 48-130V50/60HZ-DC Contactor

Availability On Request

£209.55
  • Model: AF26ZB-40-00RT-22
  • 4 pole contactor
  • Voltage range: 48-130 V 50/60 Hz and DC
  • Suitable for motors up to 11 kW / 400 V AC (AC-3)
  • Switching power circuits up to 45 A (AC-1) or 45 A UL general use
  • Ring-Tongue Terminals
  • Surge protection built-in
  • Wide control voltage range for managing large variations
  • Energy-efficient with reduced panel energy consumption
  • Distinct operations in unstable networks

Read more

  • Block type design
  • Compatible with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF26ZB-40-00RT
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
48 Volt
Rated control supply voltage Us at AC 60HZ -
48 Volt
Rated control supply voltage Us at DC -
48 Volt
Depth -
101 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
48 Volt
Rated control supply voltage at AC 60 Hz -
48 Volt
Rated control supply voltage at DC -
48 Volt
Rated operation current Ie at AC-1, 400 V -
45 Ampere
Rated operation current Ie at AC-3, 400 V -
22 Ampere
Rated operation power at AC-3, 400 V -
11 Kilowatt
Type of electrical connection of main circuit -
Other
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability On Request

£209.55
