1SBL296001R2322

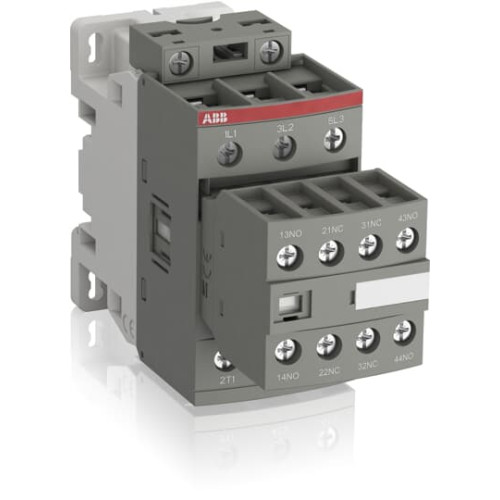

AF38Z-30-22-23 100-250V50/60HZ-DC Contactor

Manufacturer's No: AF38Z-30-22-23     Manufacturer: ABB
AF38Z-30-22-23 100-250V50/60HZ-DC Contactor

Availability On Request

£286.35
  • Model: AF38Z-30-22-23
  • Type: 3-pole contactor
  • Voltage: 100-250V 50/60Hz AC, DC
  • Maximum Motor Power: 18.5 kW / 400V AC, 25 hp / 480V UL
  • Maximum Switching Power: 50A AC-1, 50A UL general use
  • Features pre-mounted auxiliary contacts and screw terminals
  • Wide control voltage range for managing large variations
  • Built-in surge protection for compact solution
  • Block type design for easy extension with add-on accessories


Product

Manufacturer Material ID -
AF38Z-30-22-23
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85364900
UNSPSC -
39121529

Technical Specification

Depth -
119.5 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
50 Ampere
Rated operation current Ie at AC-3, 400 V -
38 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability On Request

£286.35
