1SBL417210R7200

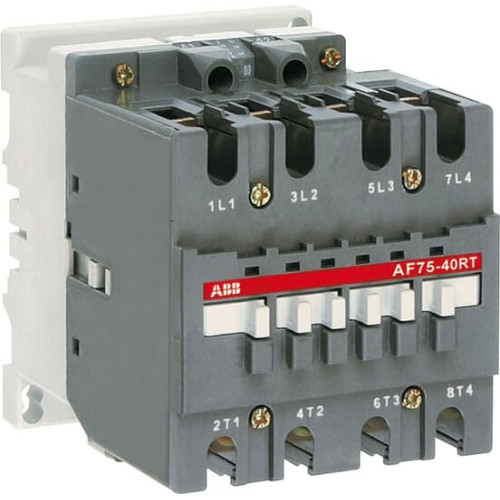

AF75-40-00RT 20-60V DC Contactor

Manufacturer's No: AF75-40-00RT     Manufacturer: ABB
AF75-40-00RT 20-60V DC Contactor

Availability On Request

£577.94
  • AF75-40-00RT 20-60V DC Contactor
  • 4-pole contactors for controlling non-inductive or slightly inductive loads
  • Suitable for power circuits up to 690V AC and 440V DC
  • Electronic coil interface accepts wide control voltage range
  • Can accept various supply voltages for different countries
  • Suitable for operation in AC or DC control circuits with voltage interruptions or dips
  • Advantages:
    • Wide voltage range: 100-250V AC and DC
    • Can manage large voltage variations
    • Reduced power consumption
    • Distinct closing and opening
    • Noise-free operation
    • Can withstand voltage interruptions or dips (? 20 ms)
  • Block type design with 4 N.O. main poles
  • Front and side-mounted add-on auxiliary contact blocks
  • Control circuit: AC or DC operated

Read more

  • Wide range of accessories available


Product

Manufacturer Material ID -
AF75-40-00RT
Net Weight -
1.42kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
37 Kilowatt
Number of main contacts as normally open contact -
4
Rated operation current Ie at AC-3, 400 V -
75 Ampere
Rated operation current Ie at AC-1, 400 V -
125 Ampere
Rated control supply voltage at DC -
20 Volt
Type of electrical connection of main circuit -
Other
Voltage type for actuating -
DC
ABB

Availability On Request

£577.94
