2TKA00002896

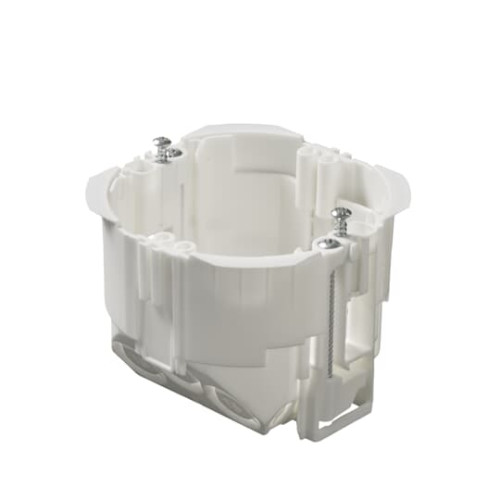

AUS74 Renovation box White IP3X

Manufacturer's No: AUS74     Manufacturer: ABB
AUS74 Renovation box White IP3X

Availability On Request

£3.23
  • AUS74 Renovation box White IP3X
  • Front-mounted mounting box for board walls of 1 – 3 gypsum boards (wall thickness 9 – 39 mm)
  • Height of the box adjustable from 54 – 70 mm
  • Installation hole diameter: 73 - 74 mm (box drill AT4)
  • Three inlets for 16 mm flexi pipe, one inlet for 16/20 mm, and one inlet for 20 mm flexi pipe
  • Two inlets with strain reliefs for 8 - 13 mm cables and two inlets for low voltage cables
  • Horizontal and vertical box combinations possible without extra parts
  • Four openings for conductor conveyance between boxes
  • Two fixing places for screws on top for installation on log walls
  • Marking holes at the bottom for box combinations (c/c 71 mm)

Read more

  • Protection class: IP3X
  • Made of halogen-free material (IEC/61249-2-21)
  • Fulfills glow wire test requirements per IEC/EN60670: 2005 (850 °C)


Product

Manufacturer Material ID -
AUS74
Net Weight -
2.66kg

Additional Product Information

Commodity Code -
39259080
Country of Origin -
FI
UNSPSC -
39122330

Technical Specification

Cover attachment -
UN
Degree of protection (NEMA) -
UN
Can be coupled -
Number of inlets -
0
Mounting switching equipment -
Screwing
Suitable for cable diameter -
8 Millimetre
Degree of protection (IP) -
IP3X
For tube diameter -
16 mm
Circuit integrity -
None
Max. conductor cross section -
0 Square millimetre
Nozzle -
None
Cover model -
None
Colour -
White
Construction type -
Device connection box (round/square)
Couplable -
Degree of protection (IP rating) -
IP3X
Depth -
73 Millimetre
Device mounting method -
Screwing
Diameter -
74 Millimetre
Equipped with -
None
For conduit/tube diameter -
16 mm
For number of electric fittings -
1
Halogen free -
Housing feed-through by break-out opening -
Internal depth -
52 Millimetre
Length -
73 Millimetre
Material -
Plastic
Model -
Single
Mounting method -
Flush mounted
Number of entry points -
0
Number of included spouts -
0
Number of poles of the clamp -
0
Pipe locking -
Shape -
Round
Special application -
None
Suitable for cable outer diameter -
8 Millimetre
Surface protection -
Untreated
Width -
73 Millimetre
With screws -
ABB

Availability On Request

£3.23
