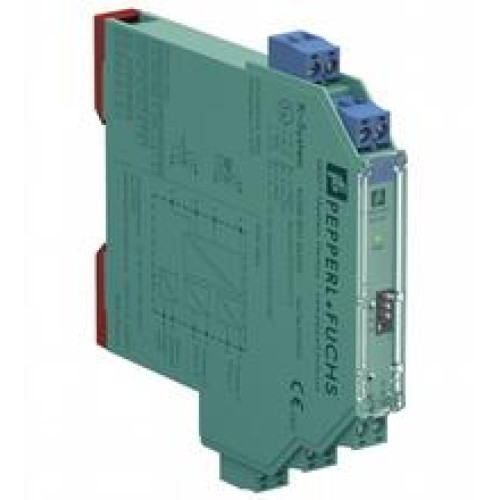

KCD2-STC-EX1.2O

SMART Transmitter Power Supply, Device provides intrinsically safe circuits for equipment protection level: Ga , Gb , Gc , Da , Db

Manufacturer's No: 272955     Manufacturer: Pepperl+Fuchs
SMART Transmitter Power Supply, Device provides intrinsically safe circuits for equipment protection level: Ga , Gb , Gc , Da , Db , Dc , Ma , Mb, Device suitable for mounting in equipment protecti..

Availability Back Order

£435.60
  • Device provides intrinsically safe circuits for equipment protection levels: Ga, Gb, Gc, Da, Db, Dc, Ma, Mb
  • Suitable for mounting in equipment protection level: Gc
  • Provides intrinsically safe circuits for division: Div. 1, Div. 2
  • Suitable for mounting in division: Div. 2
  • Safety integrity level: SIL 2
  • Systematic capability: SC 3
  • Signal type: Analog input
  • Number of channels: 1
  • Field-side signal: 0/4 ... 20 mA
  • Field-side device: 2-wire transmitter, Current source

Read more

  • Control-side signal: 0/1 ... 5 V, 0/4 ... 20 mA (current source)
  • Transmission direction: For the control
  • Functions: HART communication
  • Power supply: 24 VDC
  • Power supply connection: Terminals or Power Rail
  • Connection type: Screw terminals
  • Housing width: 12.5 mm
  • Ambient temperature: -20 ... 60 °C (-4 ... 140 °F), extended up to 70 °C (158 °F) with necessary mounting conditions.

Accessories



Product

Manufacturer Material ID -
272955
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85437090
Country of Origin -
SG
UNSPSC -
32151705
Pepperl+Fuchs

Availability Back Order

£435.60
