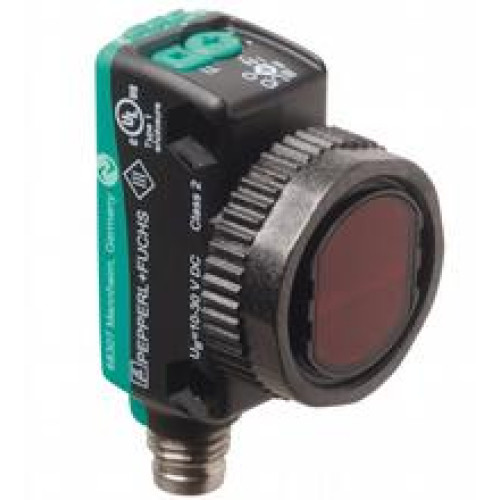

OBG4000-R103-2EP-IO-V31

Retroreflective sensor - Effective detection range: 0 ... 3.5 m in TEACH mode ; 0 ... 4 m at switch position "N", Light

Manufacturer's No: 267075-100310     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 3.5 m in TEACH mode ; 0 ... 4 m at switch position "N", Light source: LED, Light type: modulated visible red light, Signal output: 2 push-p..

Availability Available to order

£121.64
  • Detection Range:
    • TEACH Mode: 0 to 3.5 m
    • Switch Position "N": 0 to 4 m
  • Light Source: LED
  • Light Type: Modulated visible red light
  • Signal Output:
    • 2 push-pull (4 in 1) outputs
    • Short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link (via C/Q = pin 4)
  • Switching Type: Adjustable
    • Default Setting:
      • C/Q - Pin4: NPN normally open/dark-on, PNP normally closed/light-on
      • IO-Link/Q - Pin2: NPN normally closed/light-on, PNP normally open/dark-on
  • Connection: M8 x 1 connector, 4-pin
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -20 to 60 °C (-4 to 140 °F)


Product

Manufacturer Material ID -
267075-100310
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Available to order

£121.64
