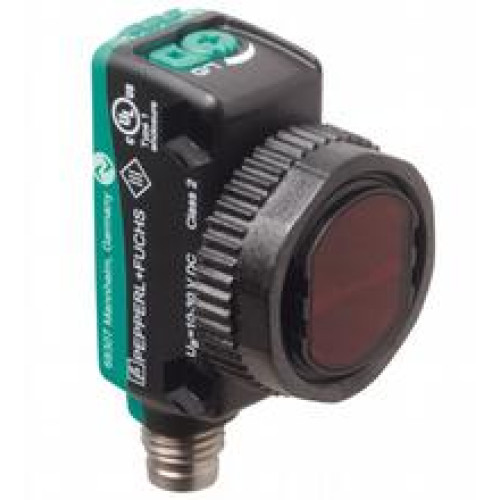

OBT250-R103-2EP-IO-V31-1T-L

Triangulation sensor - Detection range: 7 ... 250 mm, Light source: laser diode, Light type: modulated visible red light, Signal o

Manufacturer's No: 267075-100328     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 7 ... 250 mm, Light source: laser diode, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, rever..

Availability Back Order

£147.82
  • Detection range: 7 to 250 mm
  • Light source: Laser diode, modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q = pin 4
  • Switching type: Adjustable with default settings for NPN normally open / light-on, PNP normally closed / dark-on
  • Connection: M8 x 1 connector, 4-pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)

Accessories



Product

Manufacturer Material ID -
267075-100328
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
DE
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£147.82
