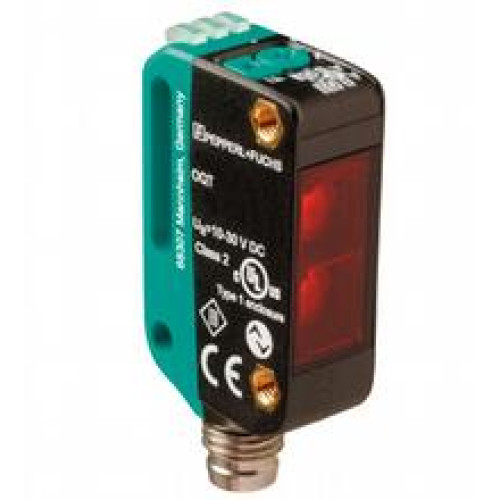

OQT150-R100-2EP-IO-V31-IR

Triangulation sensor - Detection range: 5 ... 150 mm, Light source: LED, Light type: modulated infrared light 850 nm, Signal outpu

Manufacturer's No: 267075-100411     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 5 ... 150 mm, Light source: LED, Light type: modulated infrared light 850 nm, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse p..

Availability Available to order

£128.95
  • Detection range: 5 to 150 mm
  • Light source: LED
  • Light type: Modulated infrared light at 850 nm
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
  • Interface type: IO-Link via C/Q on pin 4
  • Switching type: Default setting - C/Q Pin4: NPN normally open, PNP normally closed; IO-Link Q2 Pin2: NPN normally open, PNP normally closed
  • Connection: M8 x 1 connector, 4-pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)


Product

Manufacturer Material ID -
267075-100411
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Available to order

£128.95
