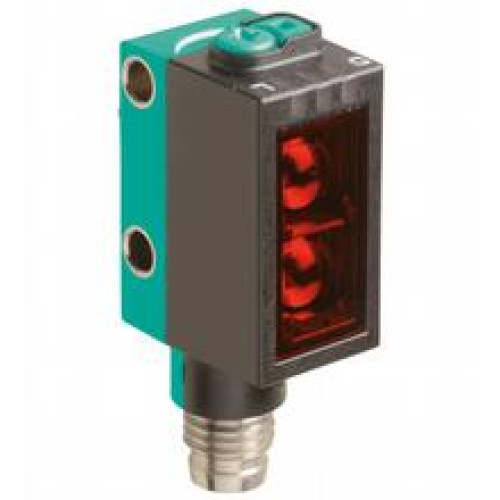

OBT350-R101-2EP-IO-V31-IR

Triangulation sensor - Detection range: 5 ... 350 mm, Light source: LED, Light type: modulated infrared light 850 nm, Signal outpu

Manufacturer's No: 267075-100416     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 5 ... 350 mm, Light source: LED, Light type: modulated infrared light 850 nm, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse p..

Availability Available to order

£104.61
  • Detection Range: 5 to 350 mm
  • Light Source: LED
  • Light Type: Modulated Infrared Light at 850 nm
  • Signal Output: 2 Push-Pull (4 in 1) Outputs, Short-Circuit Protected, Reverse Polarity Protected, Overvoltage Protected
  • Interface Type: IO-Link (via C/Q = Pin 4)
  • Switching Type: Adjustable (Default Setting: C/Q - Pin4: NPN Normally Open / Light-On, PNP Normally Closed / Dark-On, IO-Link /Q - Pin2: NPN Normally Closed / Dark-On, PNP Normally Open / Light-On)
  • Connection: M8 x 1 Connector, 4-Pin
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F)


Product

Manufacturer Material ID -
267075-100416
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Available to order

£104.61
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
