OBR7000-R101-2EP-IO-1R-IR

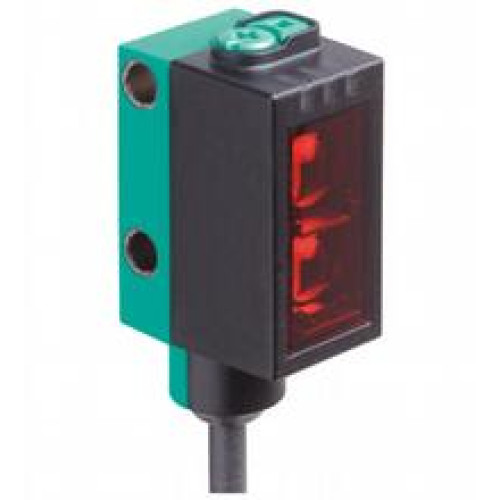

Retroreflective sensor - Effective detection range: 0 ... 7 m, Light source: LED, Light type: modulated infrared light 850 nm, Sig

Manufacturer's No: 267075-100424     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 7 m, Light source: LED, Light type: modulated infrared light 850 nm, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, ..

Availability Back Order

£76.28
  • Detection Range: 0 to 7 meters
  • Light Source: LED
  • Light Type: Modulated infrared light at 850 nm
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via pin 4
  • Switching Type: Adjustable with default settings for NPN normally open/dark-on and PNP normally closed/light-on
  • Connection: 2-meter fixed cable
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F) for fixed cable, -25 to 60 °C (-13 to 140 °F) for movable cable (not suitable for conveyor chains)

Accessories



Product

Manufacturer Material ID -
267075-100424
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£76.28
