OBD1100-R101-2EP-IO-IR

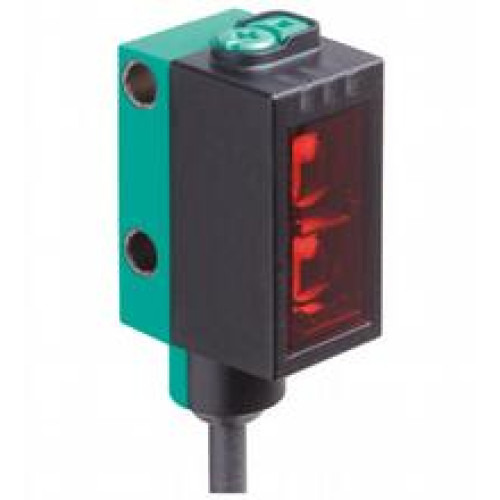

Diffuse mode sensor - Detection range: 2 ... 1100 mm, Light source: LED, Light type: modulated infrared light 850 nm, Signal outpu

Manufacturer's No: 267075-100433     Manufacturer: Pepperl+Fuchs
Diffuse mode sensor - Detection range: 2 ... 1100 mm, Light source: LED, Light type: modulated infrared light 850 nm, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse p..

Availability Available to order

£72.99
  • Detection range: 2 to 1100 mm
  • Light source: LED
  • Light type: Modulated infrared light at 850 nm
  • Signal output: 2 push-pull outputs (4 in 1), short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q = BK
  • Switching type: Adjustable with default settings as NPN normally open / light-on for C/Q - BK and NPN normally closed / dark-on for IO-Link /Q - WH
  • Connection: 2 m fixed cable
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F) for fixed cable, -25 to 60 °C (-13 to 140 °F) for movable cable (not suitable for conveyor chains)


Product

Manufacturer Material ID -
267075-100433
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Available to order

£72.99
