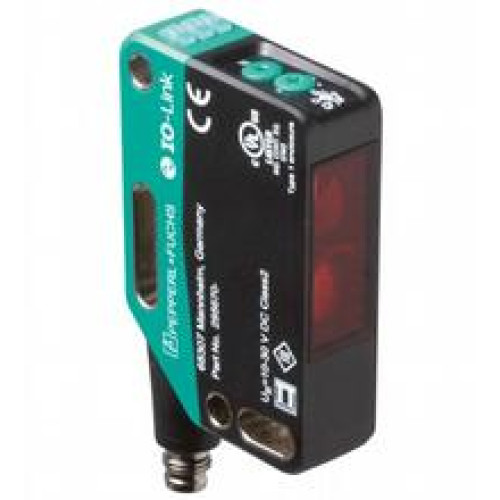

OBG8000-R201-2EP-IO-V1

Retroreflective sensor - Effective detection range: 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N", Light

Manufacturer's No: 295670-100191     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N", Light source: LED, Light type: modulated visible red light, Signal output: 2 push-p..

Availability Back Order

£135.38
  • Detection range: 0 to 5.6 m in TEACH mode; 0 to 8 m at switch position "N"
  • Light source: LED, Light type: modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q = pin 4
  • Switching type: Adjustable with default settings for C/Q - Pin4: NPN normally open/dark-on, PNP normally closed/light-on, IO-Link/Q - Pin2: NPN normally closed/light-on, PNP normally open/dark-on
  • Connection: 4-pin, M12 x 1 connector, 90° rotatable
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -20 to 60 °C (-4 to 140 °F)

Accessories



Product

Manufacturer Material ID -
295670-100191
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
