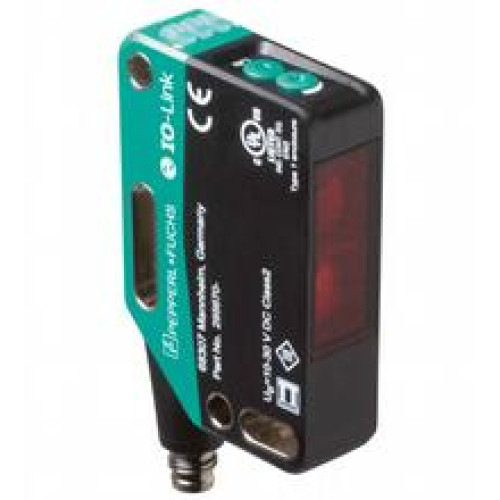

OBT600-R201-2EP-IO-V1-L

Triangulation sensor - Detection range: 40 ... 600 mm, Light source: laser diode, Light type: modulated visible red light, Signal

Manufacturer's No: 295670-100242     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 40 ... 600 mm, Light source: laser diode, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reve..

Availability Back Order

£167.89
  • Detection range: 40 to 600 mm
  • Light source: Laser diode
  • Light type: Modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q on pin 4
  • Switching type: Adjustable with default settings for NPN normally open / light-on and PNP normally closed / dark-on
  • Connection: 4-pin, M12 x 1 connector, 90° rotatable
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)

Accessories



Product

Manufacturer Material ID -
295670-100242
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£167.89
