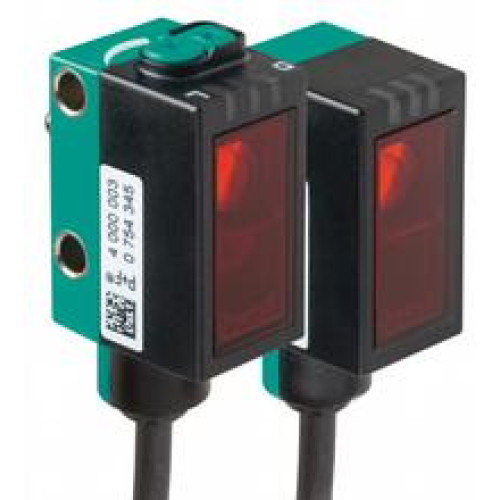

OBE20M-R101-S2EP-IO-IR

Thru-beam sensor - Effective detection range: 0.2 ... 20 m, Light source: LED, Light type: modulated infrared light 850 nm, Signal

Manufacturer's No: 300178     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0.2 ... 20 m, Light source: LED, Light type: modulated infrared light 850 nm, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, rev..

Availability Available to order

£91.25
  • Detection Range: 0.2 to 20 m
  • Light Source: LED
  • Light Type: Modulated Infrared Light at 850 nm
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link (via C/Q = pin 4)
  • Switching Type: Adjustable with default settings as follows:
    • C/Q - BK: NPN normally open/dark-on, PNP normally closed/light-on
    • IO-Link/Q - WH: NPN normally closed/light-on, PNP normally open/dark-on
  • Connection: 2 m fixed cable
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F) for fixed cable, -25 to 60 °C (-13 to 140 °F) for movable cable (not suitable for conveyor chains)


Product

Manufacturer Material ID -
300178
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Available to order

£91.25
