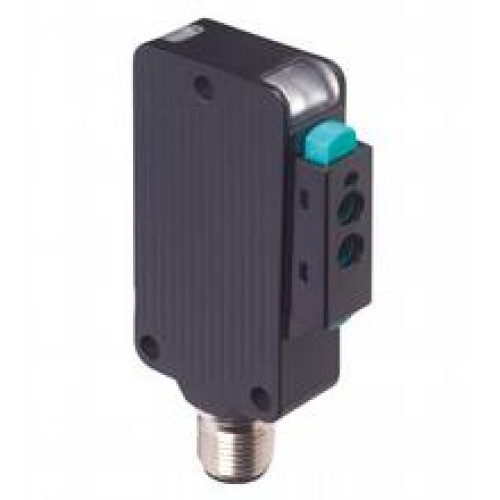

MLV41-LL-IR-IO/92/136

Fiber optic sensor - Sensor range: on black (6 %): up to 55 mm on Kodak white, reflection factor 90% up to 160 mm with LLR 04-1.6-

Manufacturer's No: 249785     Manufacturer: Pepperl+Fuchs
Fiber optic sensor - Sensor range: on black (6 %): up to 55 mm on Kodak white, reflection factor 90% up to 160 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable, Light source: IRED, Light type: modulated..

Availability Available to order

£264.35
  • Sensor range:
    • Black (6%): up to 55 mm
    • Kodak white (reflection factor 90%): up to 160 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable
  • Light source: IRED
  • Light type: modulated infrared light, 880 nm
  • Signal output: 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected
  • Interface type: IO-Link
  • Switching type: light/dark on
  • Connection: 4-pin, M12 x 1 connector
  • Operating voltage: 10-30 V DC
  • Ambient temperature: -20 to 60 °C (-4 to 140 °F)


Product

Manufacturer Material ID -
249785
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Available to order

£264.35
