MLV41-LL-RT-IO/92/136

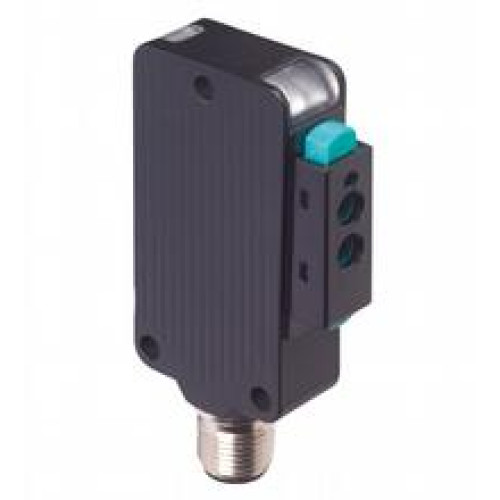

Fiber optic sensor - Sensor range: on black (6 %): up to 36 mm on Kodak white, reflection factor 90% up to 120 mm with LLR 04-1.6-

Manufacturer's No: 249788     Manufacturer: Pepperl+Fuchs
Fiber optic sensor - Sensor range: on black (6 %): up to 36 mm on Kodak white, reflection factor 90% up to 120 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable, Light source: LED, Light type: modulated ..

Availability Back Order

£254.94
  • Sensor range:
    • Black (6%): up to 36 mm
    • Kodak white (reflection factor 90%): up to 120 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable
  • Black (6%): up to 36 mm
  • Kodak white (reflection factor 90%): up to 120 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable
  • Light source: LED
    • Light type: modulated visible red light, 660 nm
  • Light type: modulated visible red light, 660 nm
  • Signal output:
    • 2 push-pull (4 in 1) outputs, complementary
    • Short-circuit proof, reverse polarity protected
  • 2 push-pull (4 in 1) outputs, complementary
  • Short-circuit proof, reverse polarity protected
  • Interface type: IO-Link
  • Switching type: light/dark on

Read more

  • Connection: 4-pin, M12 x 1 connector
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -20 to 60 °C (-4 to 140 °F)

Accessories



Product

Manufacturer Material ID -
249788
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
