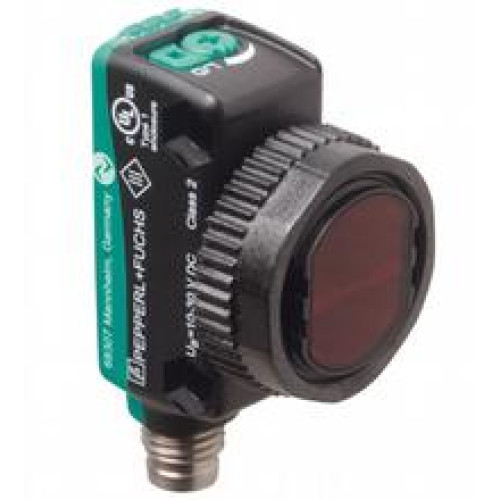

OBD800-R103-2EP-IO-V31

Diffuse mode sensor - Detection range: 2 ... 800 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-100257     Manufacturer: Pepperl+Fuchs
Diffuse mode sensor - Detection range: 2 ... 800 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polari..

Availability Available to order

£72.99
  • Detection range: 2 to 800 mm
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via pin 4
  • Switching type: Adjustable with default settings for NPN normally open / light-on and PNP normally closed / dark-on
  • Connection: M8 x 1 connector, 4-pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)


Product

Manufacturer Material ID -
267075-100257
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability Available to order

£72.99
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
