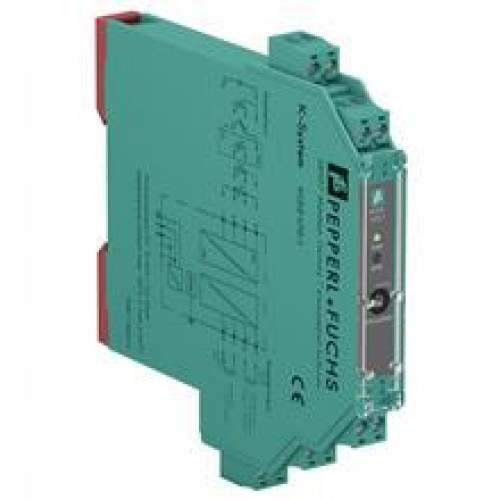

KCD2-UT2-1

Universal Temperature Converter, Safety integrity level: SIL 2, Signal type: Analog input, Number of channels: 1, Field-side signa

Manufacturer's No: 253994     Manufacturer: Pepperl+Fuchs
Universal Temperature Converter, Safety integrity level: SIL 2, Signal type: Analog input, Number of channels: 1, Field-side signal: -100 ... 100 mV, Field-side device: Potentiometer, Resistance Th..

Availability Available to order

£261.00
  • Safety integrity level: SIL 2
  • Signal type: Analog input
  • Field-side signal: -100 to 100 mV
  • Field-side device: Potentiometer, Resistance Thermometer, Thermocouple
  • Control-side signal: 0/4 to 20 mA (current source or current sink)
  • Functions: Line fault detection
  • Power supply: 24 VDC
  • Power supply connection: Terminals or Power Rail
  • Connection type: Screw terminals
  • Housing width: 12.5 mm

Read more

  • Ambient temperature: -20 to 70 °C (-4 to 158 °F)


Product

Manufacturer Material ID -
253994
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85437090
Country of Origin -
SG
UNSPSC -
39121521
Pepperl+Fuchs

Availability Available to order

£261.00
