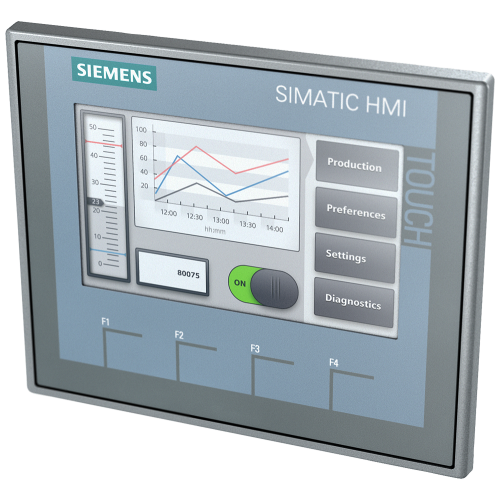

KTP400 Basic - 4" Colour Touch + 4 Function keys - Profinet
warranty

6AV21232DB030AX0

KTP400 Basic - 4" Colour Touch + 4 Function keys - Profinet

Produced by Siemens

Availability In Stock

Price - £422.00
SIMATIC HMI, KTP400 Basic, Basic Panel, Key/touch operation, 4" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
No alternatives available for this product.
Product
Manufacturer Material ID -
6AV2123-2DB03-0AX0
Net Weight -
0.46kg
Additional Product Information
Commodity Code -
85371099
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503
Technical Specification
Built-in depth -
33 Millimetre
Number of interfaces PROFINET -
1
Recess depth -
33 Millimetre
Screen diagonal -
4.3 inch
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces USB -
1
Number of colours of the display -
65536
Number of pixels, horizontal -
480
Number of pixels, vertical -
272
Number of function buttons, programmable -
4
Useful project memory/user memory -
10000 kiloByte (1000 Byte)
Number of password levels -
50
Number of online languages -
10
Width of the front -
141 Millimetre
Height of the front -
116 Millimetre
Number of HW-interfaces PROFINET -
1
Supply voltage DC -
19.2 Volt
